SI8261BBD-C-IS

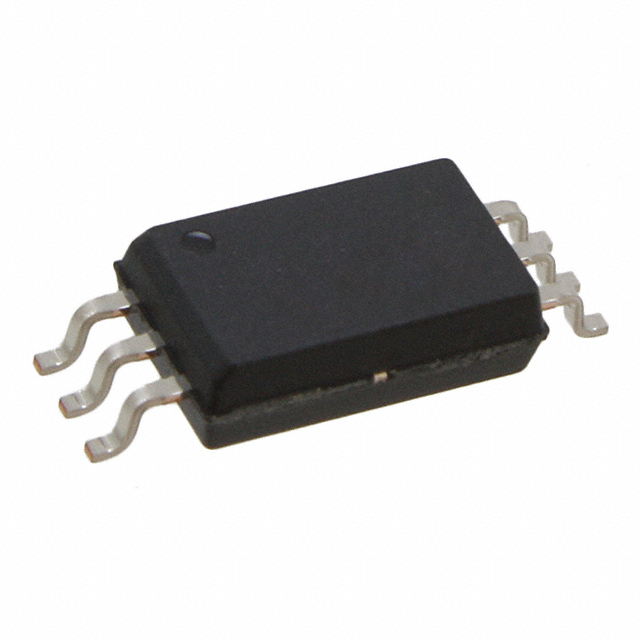

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8261BBD-C-IS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8261BBD-C-IS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8261BBD-C-IS |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | DGTL ISO 5KV 1CH GATE DRVR 6SDIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $0.711 | $0.686 | $0.659 | $0.602 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8261BBD-C-IS | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | DGTL ISO 5KV 1CH GATE DRVR 6SDIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65042 pcs | Data sheet | Si826x Datasheet |
| Category | Isolators | Voltage - Supply | 9.4 V ~ 30 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 2.8V (Max) |
| Technology | Capacitive Coupling | Supplier Device Package | 6-SDIP |
| Series | Automotive, AEC-Q100 | Rise / Fall Time (Typ) | 5.5ns, 8.5ns |
| Pulse Width Distortion (Max) | 28ns | Propagation Delay tpLH / tpHL (Max) | 60ns, 50ns |
| Packaging | Tube | Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP | Current - Peak Output | 4A |
| Current - Output High, Low | 500mA, 1.2A | Current - DC Forward (If) (Max) | 30mA |
| Common Mode Transient Immunity (Min) | 35kV/µs | Approvals | CQC, CSA, UR, VDE |
