SI8261BAD-C-IM

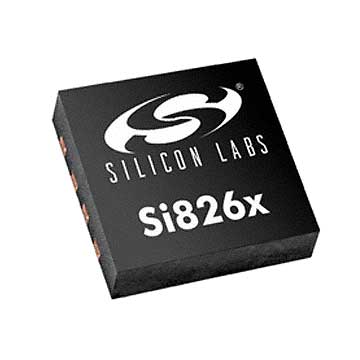

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8261BAD-C-IM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8261BAD-C-IM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8261BAD-C-IM |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | DGTL ISO 5KV 1CH GATE DRVR 8LGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8261BAD-C-IM | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | DGTL ISO 5KV 1CH GATE DRVR 8LGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4333 pcs | Data sheet | Si826x Datasheet |
| Category | Isolators | Voltage - Supply | 6.5 V ~ 30 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 2.8V (Max) |
| Technology | Capacitive Coupling | Supplier Device Package | 8-LGA (10x12.5) |
| Series | Automotive, AEC-Q100 | Rise / Fall Time (Typ) | 5.5ns, 8.5ns |
| Pulse Width Distortion (Max) | 28ns | Propagation Delay tpLH / tpHL (Max) | 60ns, 50ns |
| Packaging | Tube | Package / Case | 8-VELGA |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 8-LGA (10x12.5) |
| Current - Peak Output | 4A | Current - Output High, Low | 500mA, 1.2A |
| Current - DC Forward (If) (Max) | 30mA | Common Mode Transient Immunity (Min) | 35kV/µs |
| Approvals | CQC, CSA, UR, VDE |
