SI8238BD-D-IS3

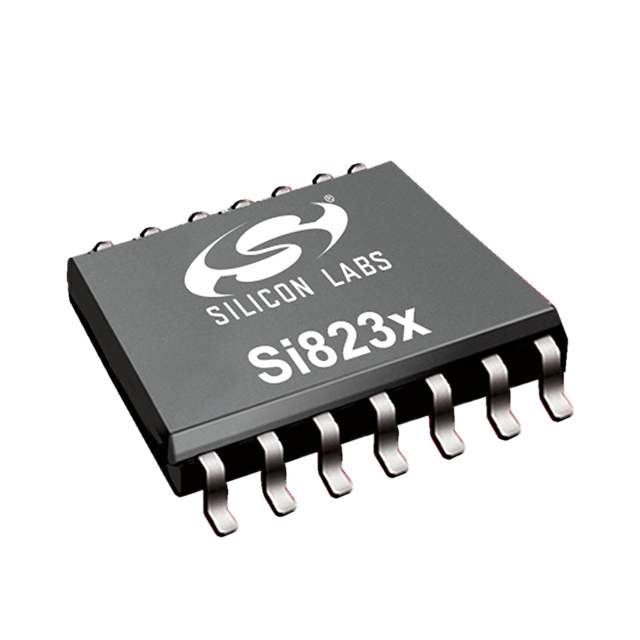

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8238BD-D-IS3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8238BD-D-IS3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8238BD-D-IS3 |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | DUAL ISOLATED GATE DRIVER, 8 MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $1.229 | $1.183 | $1.137 | $1.026 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8238BD-D-IS3 | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | DUAL ISOLATED GATE DRIVER, 8 MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37853 pcs | Data sheet | SI823x Datasheet |
| Category | Isolators | Voltage - Supply | 6.5 V ~ 24 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | - |
| Technology | Capacitive Coupling | Supplier Device Package | 14-SOIC |
| Series | Automotive, AEC-Q100 | Rise / Fall Time (Typ) | 12ns, 12ns |
| Pulse Width Distortion (Max) | 5.6ns | Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Packaging | Tube | Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Other Names | 336-4263 | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 14-SOIC |
| Current - Peak Output | 4A | Current - Output High, Low | 2A, 4A |
| Common Mode Transient Immunity (Min) | 45kV/µs | Approvals | CQC, CSA, UR, VDE |
