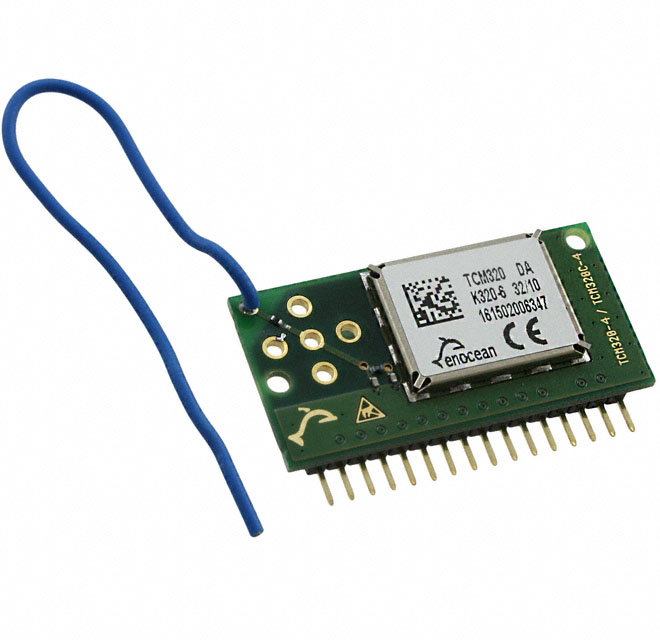

TCM320
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCM320 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCM320 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCM320 |
|---|---|
| Manufacturer | EnOcean |
| Description | RF TXRX MODULE ISM<1GHZ WHIP ANT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $11.16 | $10.436 | $9.652 | $9.425 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCM320 | Manufacturer | EnOcean |
|---|---|---|---|
| Description | RF TXRX MODULE ISM<1GHZ WHIP ANT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3768 pcs | Data sheet | TCM320_DA Status SheetTMC3x0(C)TCM300(C),320(C) User Manual |
| Category | RF/IF and RFID | Voltage - Supply | 2.6 V ~ 3.3 V |
| Utilized IC / Part | - | Series | - |
| Serial Interfaces | - | Sensitivity | -96dBm |
| RF Family/Standard | General ISM < 1GHz | Protocol | - |
| Power - Output | 5.2dBm | Packaging | Tray |
| Package / Case | Module | Other Names | 1084-1002 S3003-K320 |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Modulation | ASK |
| Memory Size | 32kB Flash, 2kB SRAM | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 868MHz |
| Data Rate | 125kbps | Current - Transmitting | 24mA |
| Current - Receiving | 33mA | Antenna Type | Integrated, Whip |
