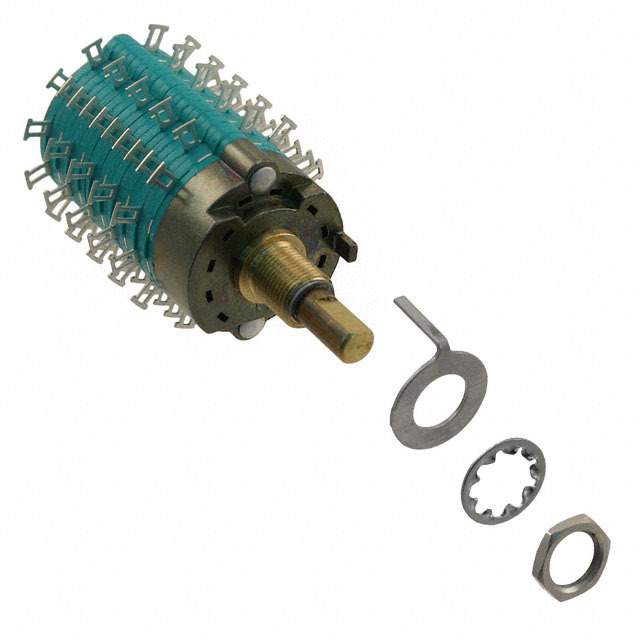

C4D1504N-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C4D1504N-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C4D1504N-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C4D1504N-A |
|---|---|
| Manufacturer | Electroswitch |
| Description | SWITCH ROTARY 2-4POS 300MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $27.913 | $26.272 | $25.452 | $23.81 | $22.496 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | C4D1504N-A | Manufacturer | Electroswitch |
|---|---|---|---|
| Description | SWITCH ROTARY 2-4POS 300MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1384 pcs | Data sheet | C4 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Series | C4 | Panel Cutout Dimensions | Circular - 9.78mm Dia |
| Other Names | 451-1026 C4D1504NA |
Operating Force | - |
| Number of Positions | 2 ~ 4 | Number of Poles per Deck | 3 |
| Number of Decks | 5 | Mounting Type | Panel Mount |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Adjustable | Features | - |
| Detailed Description | Rotary Switch 2 ~ 4 Position 3P4T 300mA (AC), 500mA (DC) 125VAC Panel Mount | Depth Behind Panel | 48.97mm |
| Current Rating | 300mA (AC), 500mA (DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Brass | Contact Finish | Silver |
| Circuit per Deck | 3P4T | Angle of Throw | 30° |
| Actuator Type | Flatted (6.35mm Dia) | Actuator Length | 12.70mm |
