Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > EA W162-X9LG

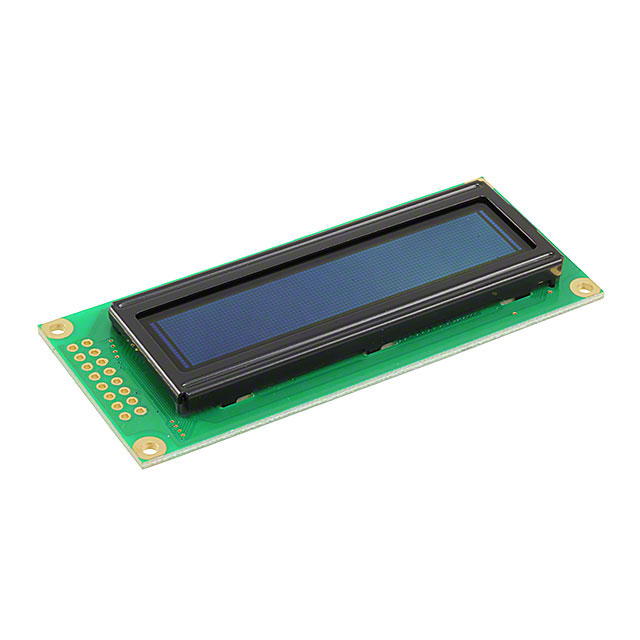

EA W162-X9LG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EA W162-X9LG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EA W162-X9LG
Manufacturer	Electronic Assembly GmbH
Description	OLED DISPLAY 2X16 YELLOW
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1978 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$19.511

Product parameter
Data sheet

Product parameter

Part Number	EA W162-X9LG	Manufacturer	Electronic Assembly GmbH
Description	OLED DISPLAY 2X16 YELLOW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1978 pcs	Data sheet	OLED-Displays
Category	Optoelectronics	Voltage - Supply	3.3 V ~ 5 V
Viewing Area	66.00mm L x 16.00mm W	Text Color	Yellow
Series	-	Outline L x W x H	85.00mm x 36.00mm x 4.80mm
Other Names	1481-1215	Operating Temperature	-40°C ~ 80°C
Number of Characters	32	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel, 8-Bit	Dot Size	0.55mm W x 0.65mm H
Display Type	OLED	Display Mode	Passive
Display Format	16 x 2	Detailed Description	Character LCD Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel, 8-Bit 85.00mm x 36.00mm x 4.80mm
Character Size	5.55mm H x 2.95mm W	Character Format	5 x 8 Dots
Backlight	Without Backlight	Background Color	Black
