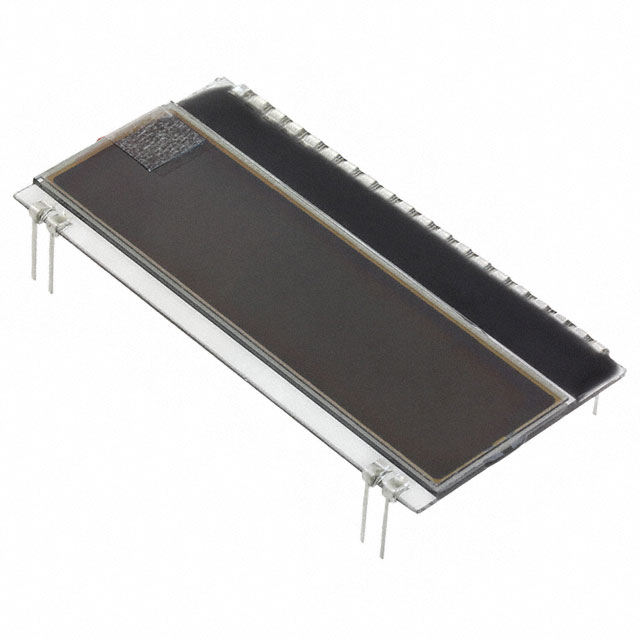

EA DOGM163S-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EA DOGM163S-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EA DOGM163S-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EA DOGM163S-A |
|---|---|
| Manufacturer | Electronic Assembly GmbH |
| Description | LCD MOD CHAR 3X16 BLK/W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $6.087 | $5.826 | $4.532 | $3.884 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.69 | $3.496 | $3.302 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EA DOGM163S-A | Manufacturer | Electronic Assembly GmbH |
|---|---|---|---|
| Description | LCD MOD CHAR 3X16 BLK/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10312 pcs | Data sheet | EA DOG-M |
| Category | Optoelectronics | Voltage - Supply | 3.3V |
| Viewing Area | 51.00mm L x 14.50mm W | Text Color | White |
| Series | EA DOG | Outline L x W x H | 55.00mm x 27.94mm x 2.00mm |
| Other Names | 1481-1082 | Operating Temperature | -20°C ~ 70°C |
| Number of Characters | 48 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel, 8-Bit, SPI | Dot Size | 0.47mm W x 0.43mm H |
| Display Type | FSTN - Film Super-Twisted Nematic | Display Mode | Transmissive |
| Display Format | 16 x 3 | Detailed Description | Character LCD Display Module Transmissive 5 x 8 Dots FSTN - Film Super-Twisted Nematic Without Backlight Parallel, 8-Bit, SPI 55.00mm x 27.94mm x 2.00mm |
| Character Size | 3.65mm H x 2.47mm W | Character Format | 5 x 8 Dots |
| Backlight | Without Backlight | Background Color | Black |
