Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-SD803C12S15C

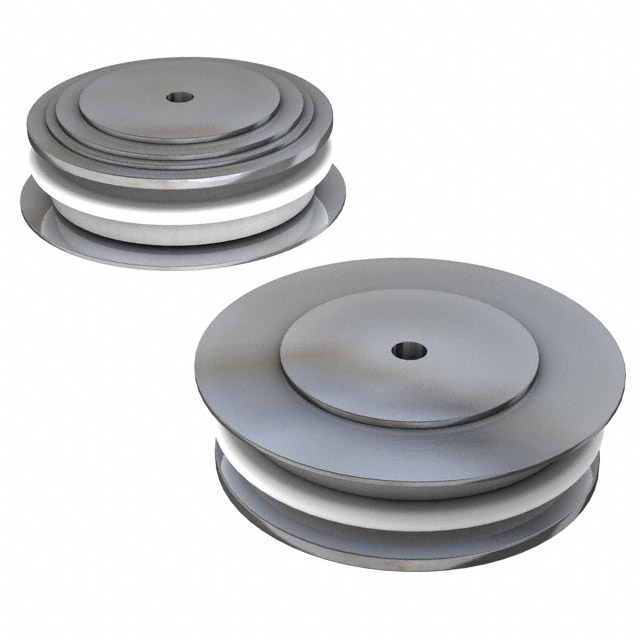

VS-SD803C12S15C

VS-SD803C12S15C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-SD803C12S15C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-SD803C12S15C
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1.2KV 845A B-43
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1023 pcs
Reference Price (In US Dollars)	12 pcs
Reference Price (In US Dollars)	$34.155

Product parameter
Data sheet

Product parameter

Part Number	VS-SD803C12S15C	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1.2KV 845A B-43	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1023 pcs	Data sheet	Hockey-PUK Mounting Instr VS-SD803C..C Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.89V @ 2655A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	B-43, Hockey PUK
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Reverse Recovery Time (trr)	1.5µs	Packaging	Bulk
Package / Case	DO-200AA, A-PUK	Other Names	*SD803C12S15C SD803C12S15C VS-SD803C12S15C-ND VSSD803C12S15C VSSD803C12S15C-ND
Mounting Type	Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 1200V 845A Stud Mount B-43, Hockey PUK
Current - Reverse Leakage @ Vr	45mA @ 1200V	Current - Average Rectified (Io)	845A
Capacitance @ Vr, F	-	Base Part Number	SD803C*C
