Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > VS-GP250SA60S

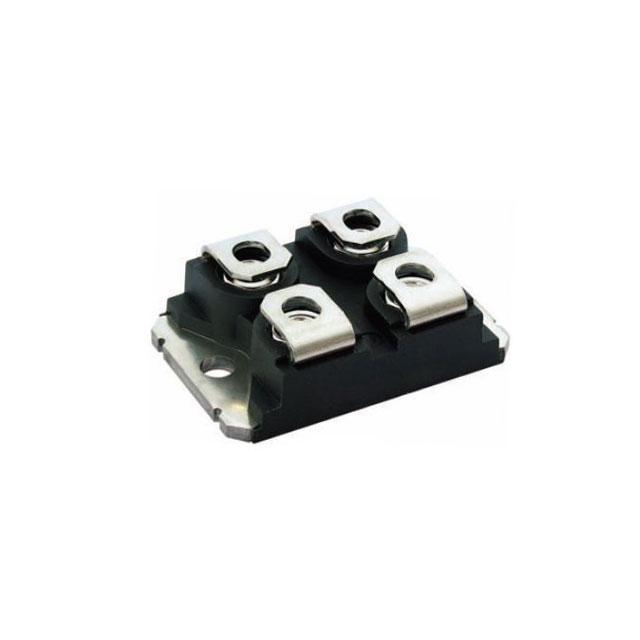

VS-GP250SA60S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-GP250SA60S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-GP250SA60S
Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 380A 893W SOT-227
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 4826 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	30 pcs
	$9.435	$8.701	$8.31
	$7.43	$7.088	$6.746

Product parameter
Data sheet

Product parameter

Part Number	VS-GP250SA60S	Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 380A 893W SOT-227	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4826 pcs	Data sheet	VS-GP250SA60S
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	1.3V @ 15V, 100A	Supplier Device Package	SOT-227
Series	-	Power - Max	893W
Package / Case	SOT-227-4, miniBLOC	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	46 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input	Standard
IGBT Type	PT, Trench	Detailed Description	IGBT Module PT, Trench Single 600V 380A 893W Chassis Mount SOT-227
Current - Collector Cutoff (Max)	100µA	Current - Collector (Ic) (Max)	380A
Configuration	Single
