Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > VS-GB90DA60U

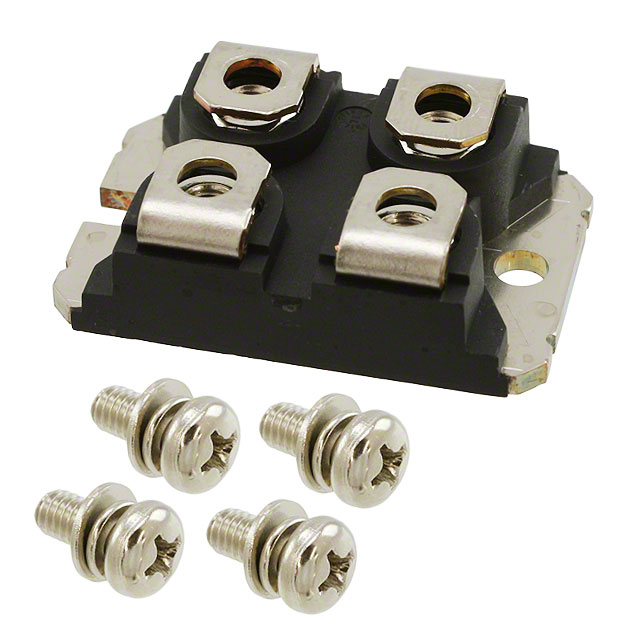

VS-GB90DA60U

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-GB90DA60U with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-GB90DA60U
Manufacturer	Electro-Films (EFI) / Vishay
Description	TRANSISTOR INSLTED GATE BIPOLAR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1340 pcs
Reference Price (In US Dollars)	160 pcs
Reference Price (In US Dollars)	$23.499

Product parameter
Data sheet

Product parameter

Part Number	VS-GB90DA60U	Manufacturer	Electro-Films (EFI) / Vishay
Description	TRANSISTOR INSLTED GATE BIPOLAR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1340 pcs	Data sheet	VS-GB90DA60U
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 100A	Supplier Device Package	SOT-227
Series	-	Power - Max	625W
Package / Case	SOT-227-4	Other Names	VS-GB90DA60UGI
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input	Standard	IGBT Type	NPT
Detailed Description	IGBT Module NPT Single 600V 147A 625W Chassis Mount SOT-227	Current - Collector Cutoff (Max)	100µA
Current - Collector (Ic) (Max)	147A	Configuration	Single
