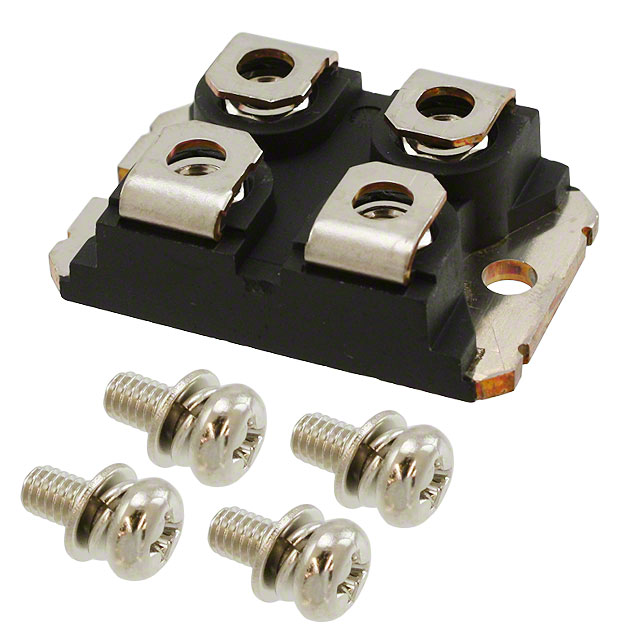

VS-FB190SA10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-FB190SA10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VS-FB190SA10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VS-FB190SA10 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 100V 190A SOT227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $10.76 | $9.923 | $9.477 | $8.473 | $8.083 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | VS-FB190SA10 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 100V 190A SOT227 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4275 pcs | Data sheet | VS-FB190SA10 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.35V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-227 | Series | - |
| Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 180A, 10V | Power Dissipation (Max) | 568W (Tc) |
| Packaging | Tube | Package / Case | SOT-227-4, miniBLOC |
| Other Names | FB190SA10 FB190SA10-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 10700pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 250nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 190A 568W (Tc) Chassis Mount SOT-227 | Current - Continuous Drain (Id) @ 25°C | 190A |
