Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > VS-CPU6006L-M3

VS-CPU6006L-M3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-CPU6006L-M3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-CPU6006L-M3
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE STANDARD 600V 30A TO247
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 42609 pcs
Reference Price (In US Dollars)	300 pcs
Reference Price (In US Dollars)	$0.873

Product parameter
Data sheet

Product parameter

Part Number	VS-CPU6006L-M3	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE STANDARD 600V 30A TO247	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42609 pcs	Data sheet	VS-CPU6006L-M3
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.75V @ 30A
Voltage - DC Reverse (Vr) (Max)	600V	Supplier Device Package	TO-247-3
Speed	Fast Recovery = 200mA (Io)	Series	FRED Pt®
Reverse Recovery Time (trr)	42ns	Packaging	Tube
Package / Case	TO-247-3	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	45 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Standard 600V 30A Through Hole TO-247-3	Current - Reverse Leakage @ Vr	30µA @ 600V
Current - Average Rectified (Io) (per Diode)	30A

Related products
Related news

Related products

VS-CPV364M4FPBF Image

Part#:~~VS-CPV364M4FPBF~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~MOD IGBT 3PHASE INV 600V SIP~~
In Stock:~~2510~~

~~$12.711/pcs~~RFQ

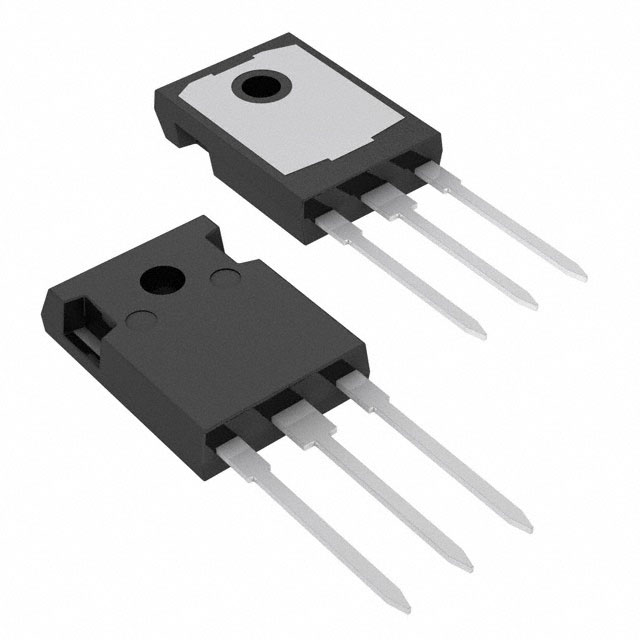

VS-CPH3006L-M3 Image
