Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > VS-83CNQ080APBF

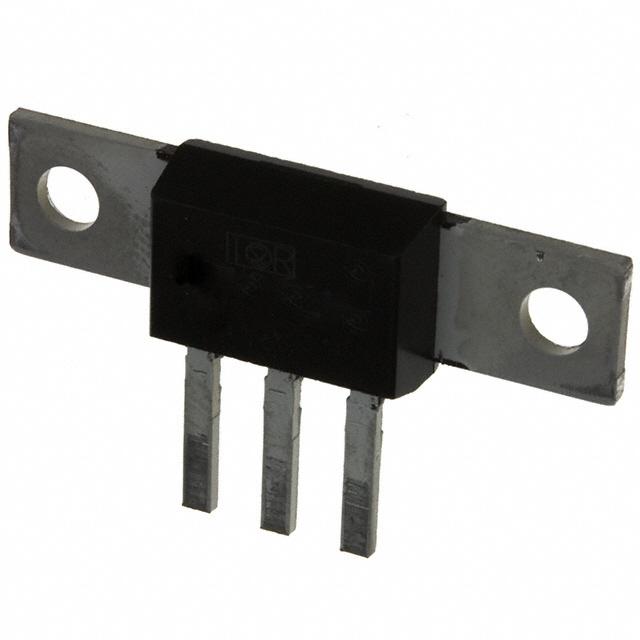

VS-83CNQ080APBF

VS-83CNQ080APBF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-83CNQ080APBF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-83CNQ080APBF
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE ARRAY SCHOTTKY 80V D618
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6725 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$4.457

Product parameter
Data sheet

Product parameter

Part Number	VS-83CNQ080APBF	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE ARRAY SCHOTTKY 80V D618	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6725 pcs	Data sheet	VS-83CNQzzzA PBF Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1V @ 80A
Voltage - DC Reverse (Vr) (Max)	80V	Supplier Device Package	D-61-8
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	D-61-8
Other Names	*83CNQ080APBF 83CNQ080APBF VS-83CNQ080APBF-ND VS83CNQ080APBF VS83CNQ080APBF-ND	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	34 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Schottky 80V 40A Chassis Mount D-61-8	Current - Reverse Leakage @ Vr	1.5mA @ 80V
Current - Average Rectified (Io) (per Diode)	40A	Base Part Number	83CNQ080
