Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-80PFR80

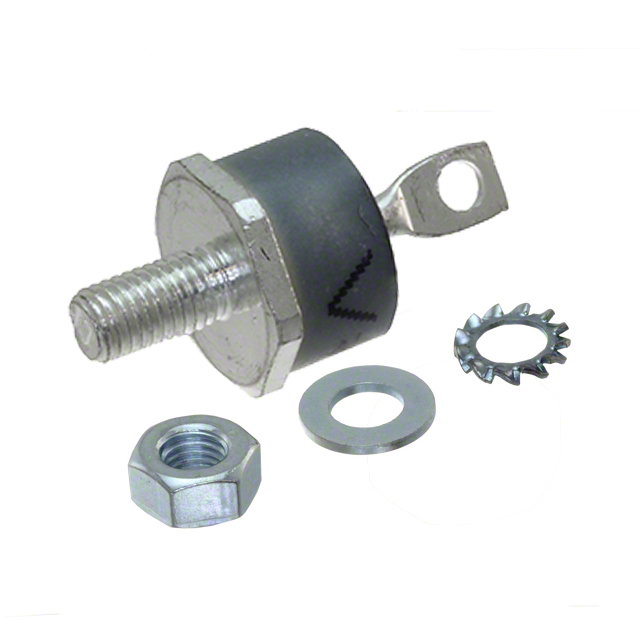

VS-80PFR80

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-80PFR80 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-80PFR80
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 800V 80A DO203AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 24805 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$2.39	$2.159	$1.788	$1.557	$1.356

Product parameter
Data sheet

Product parameter

Part Number	VS-80PFR80	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 800V 80A DO203AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24805 pcs	Data sheet	VS-80PF(R)40,80,120(W) Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.4V @ 220A
Voltage - DC Reverse (Vr) (Max)	800V	Supplier Device Package	DO-203AB (DO-5)
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-203AB, DO-5, Stud
Other Names	VS80PFR80	Operating Temperature - Junction	-55°C ~ 180°C
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 800V 80A Chassis, Stud Mount DO-203AB (DO-5)
Current - Average Rectified (Io)	80A	Capacitance @ Vr, F	-
