Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > VS-50MT060WHTAPBF

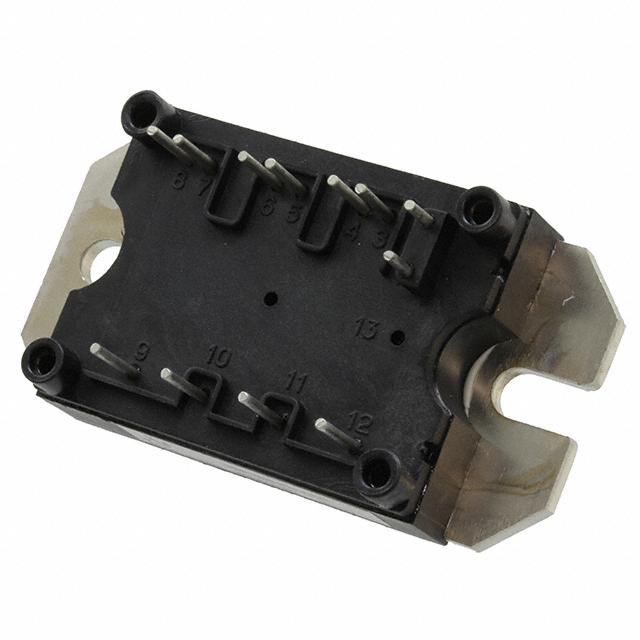

VS-50MT060WHTAPBF

VS-50MT060WHTAPBF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-50MT060WHTAPBF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-50MT060WHTAPBF
Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 114A 658W MTP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1899 pcs
Reference Price (In US Dollars)	1 pcs	15 pcs	30 pcs	105 pcs
Reference Price (In US Dollars)	$21.883	$20.556	$19.892	$18.434

Product parameter
Data sheet

Product parameter

Part Number	VS-50MT060WHTAPBF	Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 114A 658W MTP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1899 pcs	Data sheet	VS-50MT060WHTAPBF
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 100A	Supplier Device Package	MTP
Series	-	Power - Max	658W
Package / Case	12-MTP Module	Other Names	VS50MT060WHTAPBF
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	7.1nF @ 30V	Input	Standard
IGBT Type	-	Detailed Description	IGBT Module Half Bridge 600V 114A 658W Chassis Mount MTP
Current - Collector Cutoff (Max)	400µA	Current - Collector (Ic) (Max)	114A
Configuration	Half Bridge
