Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-305U250P4

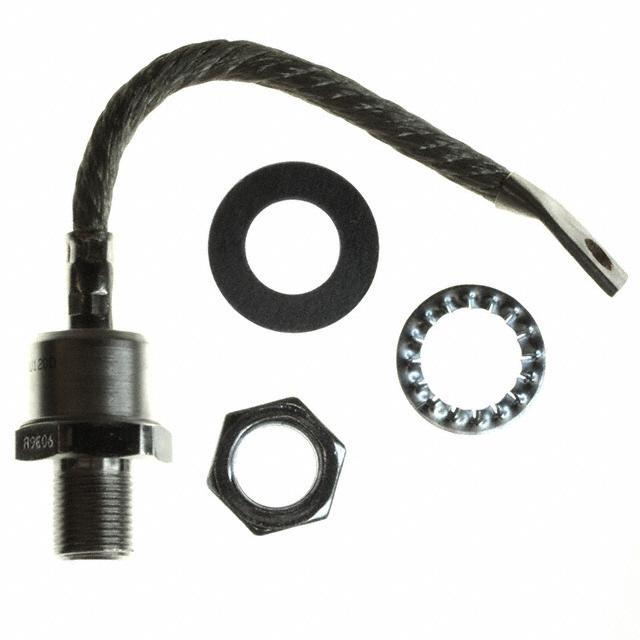

VS-305U250P4

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-305U250P4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-305U250P4
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 2.5KV 300A DO9
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1081 pcs
Reference Price (In US Dollars)	12 pcs
Reference Price (In US Dollars)	$29.539

Product parameter
Data sheet

Product parameter

Part Number	VS-305U250P4	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 2.5KV 300A DO9	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1081 pcs	Data sheet	VS-30xU(R) Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.46V @ 942A
Voltage - DC Reverse (Vr) (Max)	2500V	Supplier Device Package	DO-205AB, DO-9
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-205AB, DO-9, Stud
Other Names	VS305U250P4	Operating Temperature - Junction	-40°C ~ 180°C
Mounting Type	Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 2500V 300A Stud Mount DO-205AB, DO-9
Current - Average Rectified (Io)	300A	Capacitance @ Vr, F	-
