Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-25FR120

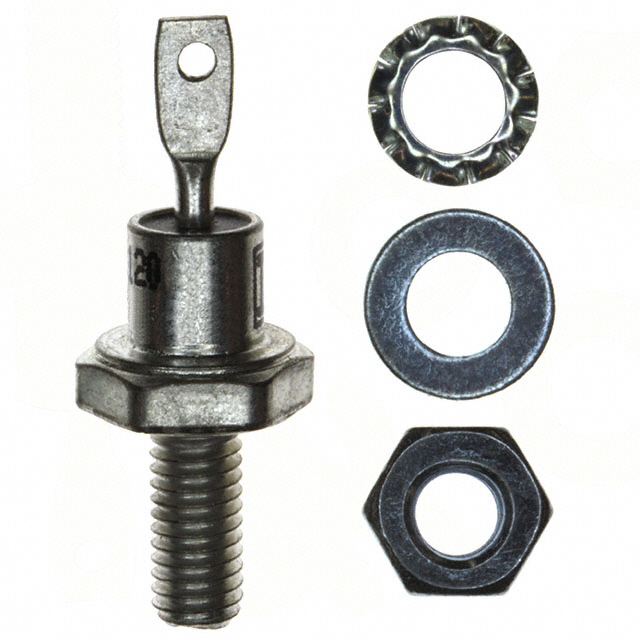

VS-25FR120

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-25FR120 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-25FR120
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1.2KV 25A DO203AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14741 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$3.524	$3.182	$2.635	$2.294

Product parameter
Data sheet

Product parameter

Part Number	VS-25FR120	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1.2KV 25A DO203AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14741 pcs	Data sheet	VS-25F(R) Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.3V @ 78A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	DO-203AA
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-203AA, DO-4, Stud
Other Names	*25FR120 25FR120 VS-25FR120-ND VS25FR120 VS25FR120-ND	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard, Reverse Polarity	Detailed Description	Diode Standard, Reverse Polarity 1200V 25A Chassis, Stud Mount DO-203AA
Current - Reverse Leakage @ Vr	12mA @ 1200V	Current - Average Rectified (Io)	25A
Capacitance @ Vr, F	-
