Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-243NQ100PBF

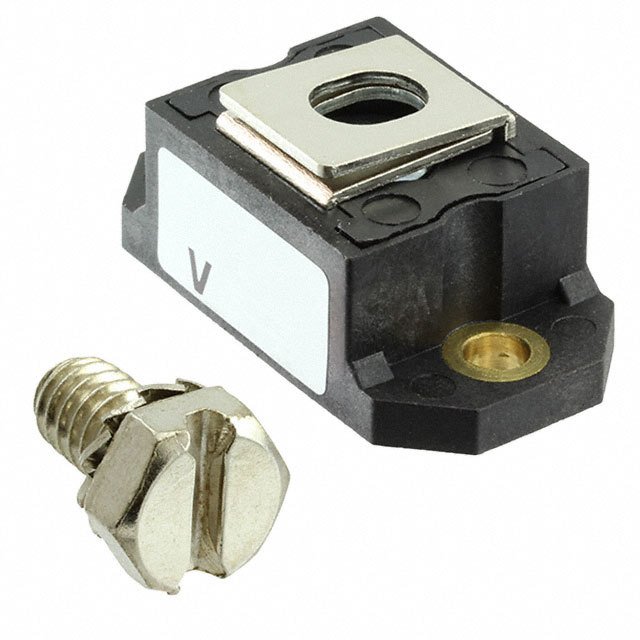

VS-243NQ100PBF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-243NQ100PBF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-243NQ100PBF
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE SCHOTTKY 100V 240A D-67
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3605 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs	250 pcs
Reference Price (In US Dollars)	$11.771	$10.856	$10.368	$9.27	$8.843

Product parameter
Data sheet

Product parameter

Part Number	VS-243NQ100PBF	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE SCHOTTKY 100V 240A D-67	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3605 pcs	Data sheet	VS-243NQ100PbF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	950mV @ 240A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	D-67
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	D-67 HALF-PAK
Other Names	VS-243NQ100PBF-ND VS-243NQ100PBFGI	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	28 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 100V 240A Chassis Mount D-67
Current - Reverse Leakage @ Vr	6mA @ 100V	Current - Average Rectified (Io)	240A
Capacitance @ Vr, F	5500pF @ 5V, 1MHz
