Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-123NQ100PBF

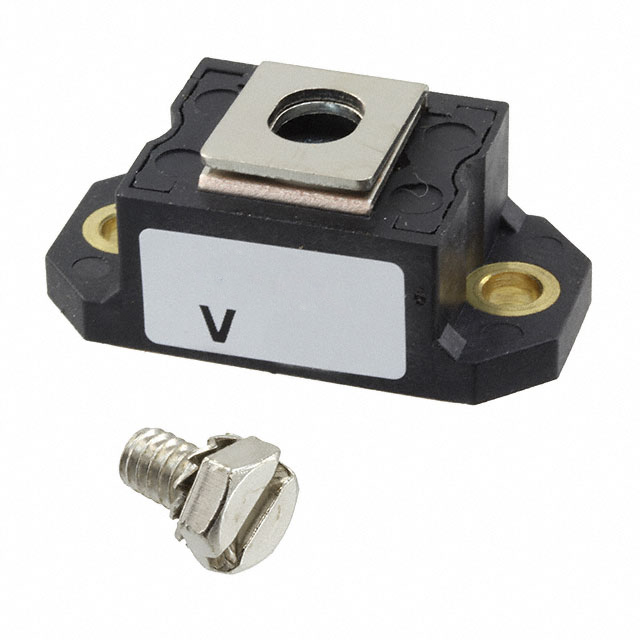

VS-123NQ100PBF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-123NQ100PBF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-123NQ100PBF
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE SCHOTTKY 100V 120A D-67
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7255 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$7.419	$6.842	$6.535
	$5.843	$5.574	$5.305

Product parameter
Data sheet

Product parameter

Part Number	VS-123NQ100PBF	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE SCHOTTKY 100V 120A D-67	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7255 pcs	Data sheet	123NQ100PBF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	910mV @ 120A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	D-67
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	D-67 HALF-PAK
Operating Temperature - Junction	-55°C ~ 175°C	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	28 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 100V 120A Chassis Mount D-67	Current - Reverse Leakage @ Vr	3mA @ 100V
Current - Average Rectified (Io)	120A	Capacitance @ Vr, F	2650pF @ 5V, 1MHz
