Home > Products > Circuit Protection > TVS - Diodes > VCUT03B1-DD1-G-08

VCUT03B1-DD1-G-08

VCUT03B1-DD1-G-08

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VCUT03B1-DD1-G-08 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VCUT03B1-DD1-G-08
Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 3.5V 11.5V LLP1006-2M
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 937301 pcs
Reference Price (In US Dollars)	8000 pcs	16000 pcs	24000 pcs	56000 pcs
Reference Price (In US Dollars)	$0.032	$0.029	$0.027	$0.025

Product parameter
Data sheet

Product parameter

Part Number	VCUT03B1-DD1-G-08	Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 3.5V 11.5V LLP1006-2M	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	937301 pcs	Data sheet	VCUT03B1-DD1-G-08
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	3.5V (Max)
Voltage - Clamping (Max) @ Ipp	11.5V	Voltage - Breakdown (Min)	5.8V
Type	Zener	Supplier Device Package	LLP1006-2M
Series	-	Power Line Protection	No
Power - Peak Pulse	40W	Packaging	Tape & Reel (TR)
Package / Case	2-SMD, Flat Lead	Other Names	VCUT03B1-DD1-G-08-ND VCUT03B1-DD1-G-08GITR
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	47 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)
Capacitance @ Frequency	12.5pF @ 1MHz	Bidirectional Channels	1
Applications	General Purpose

Related products
Related news

Related products

VCUT05D1-SD0-G4-08 Image

Part#:~~VCUT05D1-SD0-G4-08~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~TVS DIODE 5.5V 13V CLP0603~~
In Stock:~~4642~~

VCUT0714A-02Z-GS08 Image

Part#:~~VCUT0714A-02Z-GS08~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~TVS DIODE 7V/14V 17V/30V SOD923~~
In Stock:~~5156~~

VCUG040180L1WP Image

Part#:~~VCUG040180L1WP~~
Manufacturers:~~AVX Corporation~~
Description:~~VARISTOR 28V 10A 0402~~
In Stock:~~1196369~~

~~$0.02/pcs~~RFQ

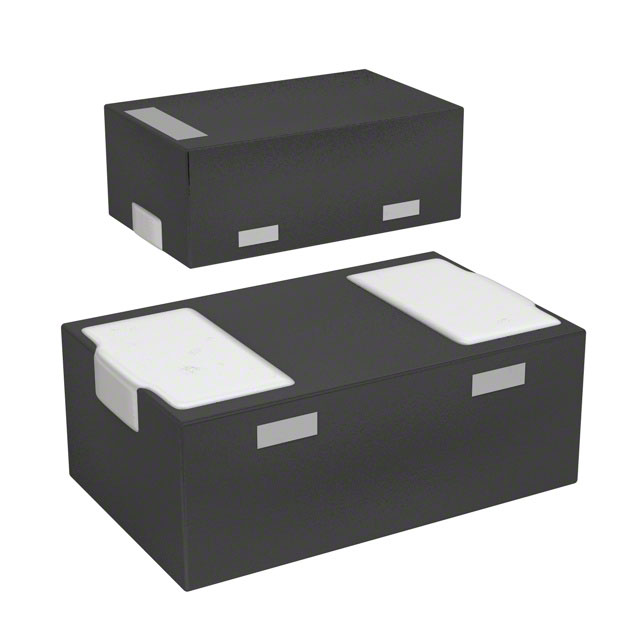

VCUT05B1-DD1-G-08 Image
