Home > Products > Sensors, Transducers > Optical Sensors - Photo Detectors - Remote Receive > TSOP2256

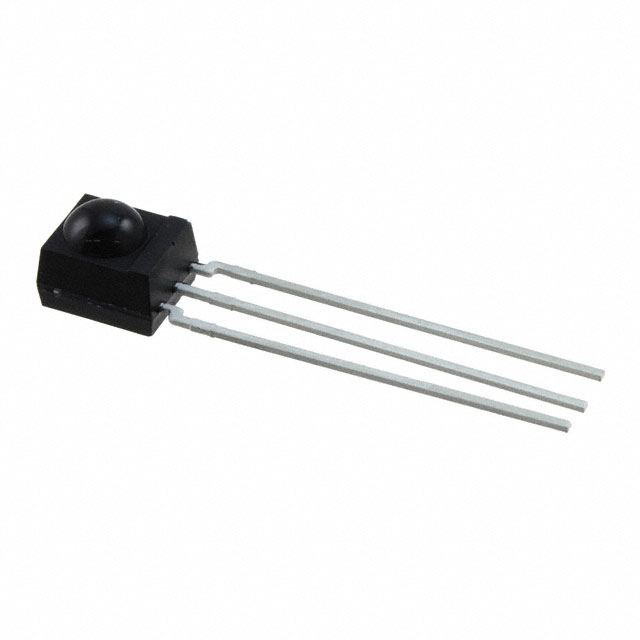

TSOP2256

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSOP2256 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TSOP2256
Manufacturer	Electro-Films (EFI) / Vishay
Description	IC IR RCVR MODULE 56KHZ
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 132983 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs	50 pcs
	$0.469	$0.451	$0.367	$0.316	$0.274
	$0.248	$0.209	$0.186	$0.169

Product parameter
Data sheet

Product parameter

Part Number	TSOP2256	Manufacturer	Electro-Films (EFI) / Vishay
Description	IC IR RCVR MODULE 56KHZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	132983 pcs	Data sheet	TSOP22,24 TSOP44,48
Category	Sensors, Transducers	Voltage - Supply	2.5V ~ 5.5V
Series	-	Sensing Distance	45m
Packaging	Tube	Orientation	Side View
Operating Temperature	-25°C ~ 85°C (TA)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Remote Receiver Sensor, 56.0kHz 45m Through Hole
Current - Supply	700µA	B.P.F. Center Frequency	56.0kHz
