Home > Products > Sensors, Transducers > Optical Sensors - Photointerrupters - Slot Type - > TCPT1350X01

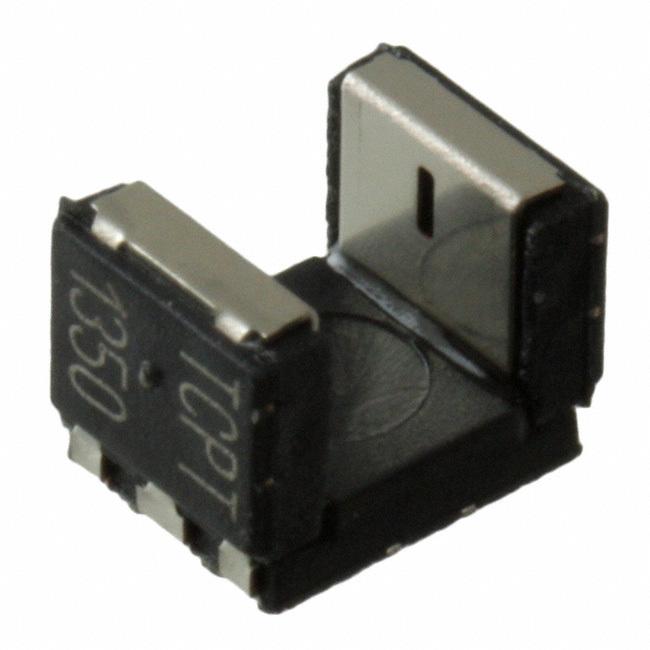

TCPT1350X01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCPT1350X01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TCPT1350X01
Manufacturer	Electro-Films (EFI) / Vishay
Description	SENSOR OPTO SLOT TRANS 3MM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 114924 pcs
Reference Price (In US Dollars)	2000 pcs	4000 pcs	6000 pcs	10000 pcs
Reference Price (In US Dollars)	$0.24	$0.232	$0.218	$0.203

Product parameter
Data sheet

Product parameter

Part Number	TCPT1350X01	Manufacturer	Electro-Films (EFI) / Vishay
Description	SENSOR OPTO SLOT TRANS 3MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	114924 pcs	Data sheet	TCPT,TCUT1350,1600 Brochure TCPT1350X01
Category	Sensors, Transducers	Voltage - Collector Emitter Breakdown (Max)	20V
Type	Unamplified	Series	-
Sensing Method	Transmissive	Sensing Distance	0.118" (3mm)
Response Time	9µs, 16µs	Packaging	Tape & Reel (TR)
Package / Case	Module, Slotted	Output Configuration	Phototransistor
Other Names	TCPT1350X01TR	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optical Sensor Transmissive 0.118" (3mm) Phototransistor Module, Slotted	Current - DC Forward (If) (Max)	15mA
Current - Collector (Ic) (Max)	20mA
