Home > Products > Potentiometers, Variable Resistors > Trimmer Potentiometers > ST32TB501

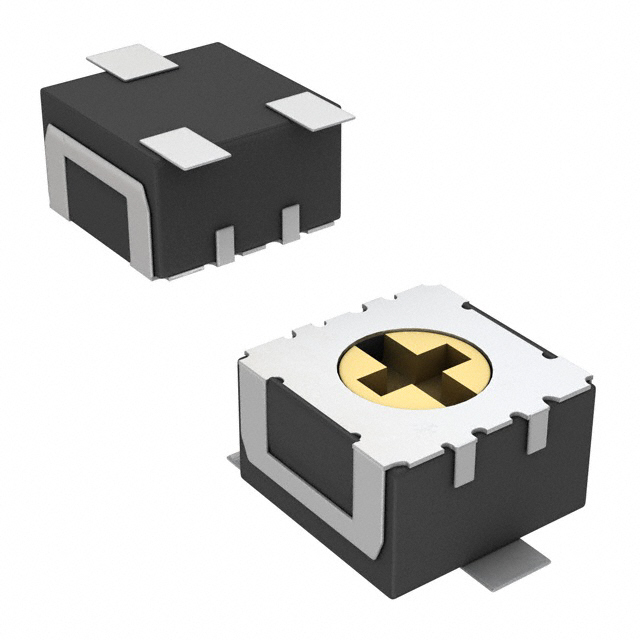

ST32TB501

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST32TB501 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ST32TB501
Manufacturer	Electro-Films (EFI) / Vishay
Description	TRIMMER 500 OHM 0.125W GW TOP
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4191 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ST32TB501	Manufacturer	Electro-Films (EFI) / Vishay
Description	TRIMMER 500 OHM 0.125W GW TOP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4191 pcs	Data sheet	ST-32
Category	Potentiometers, Variable Resistors	Tolerance	±20%
Termination Style	Gull Wing	Temperature Coefficient	±100ppm/°C
Size / Dimension	Square - 0.134" x 0.134" Face x 0.079" H (3.40mm x 3.40mm x 2.00mm)	Series	ST-32
Resistive Material	Cermet	Resistance	500 Ohms
Power (Watts)	0.125W, 1/8W	Packaging	Tape & Reel (TR)
Other Names	RST32ETB501TR-ND ST32TB501TR	Number of Turns	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Detailed Description	500 Ohms 0.125W, 1/8W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1 Turn Top Adjustment
Adjustment Type	Top Adjustment
