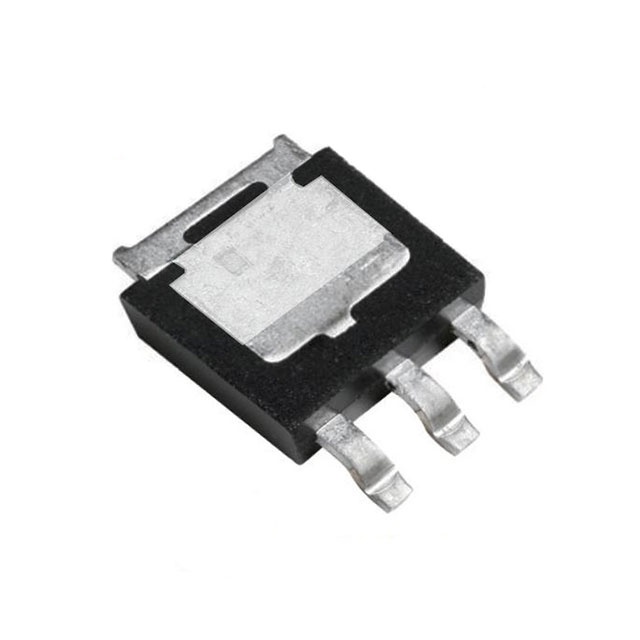

SQR70090ELR_GE3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQR70090ELR_GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQR70090ELR_GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQR70090ELR_GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CHANNEL 100V 86A DPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.606 | $0.537 | $0.425 | $0.329 | $0.26 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SQR70090ELR_GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 100V 86A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87849 pcs | Data sheet | SQR70090ELR |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D-PAK (TO-252) | Series | Automotive, AEC-Q101, TrenchFET® |
| Rds On (Max) @ Id, Vgs | 8.7 mOhm @ 25A, 10V | Power Dissipation (Max) | 136W (Tc) |
| Packaging | Tube | Package / Case | TO-252-4, DPak (3 Leads + Tab) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3500pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 65nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 86A (Tc) 136W (Tc) Surface Mount D-PAK (TO-252) | Current - Continuous Drain (Id) @ 25°C | 86A (Tc) |
