Home > Products > Resistors > Chip Resistor - Surface Mount > SMM02070C1004FBP00

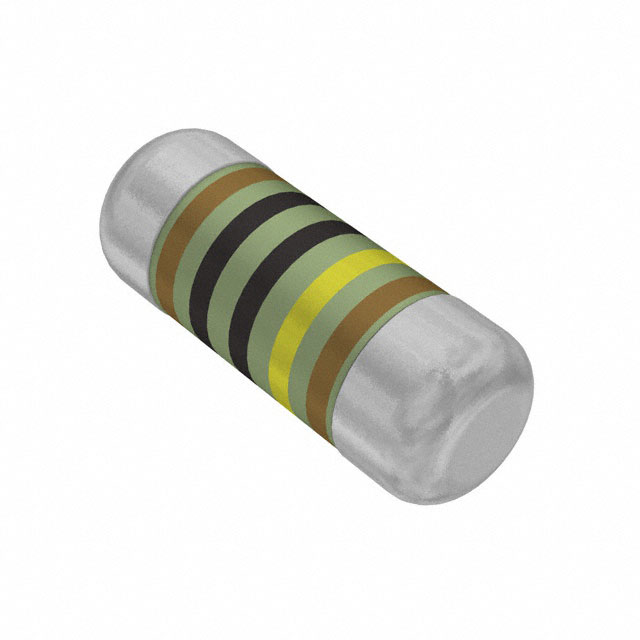

SMM02070C1004FBP00

SMM02070C1004FBP00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMM02070C1004FBP00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMM02070C1004FBP00
Manufacturer	Electro-Films (EFI) / Vishay
Description	RES SMD 1M OHM 1% 1W MELF
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 306042 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$0.202	$0.155	$0.065

Product parameter
Data sheet

Product parameter

Part Number	SMM02070C1004FBP00	Manufacturer	Electro-Films (EFI) / Vishay
Description	RES SMD 1M OHM 1% 1W MELF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	306042 pcs	Data sheet	SMM0207 Series Datasheet
Category	Resistors	Tolerance	±1%
Temperature Coefficient	±50ppm/°C	Supplier Device Package	MELF
Size / Dimension	0.087" Dia x 0.228" L (2.20mm x 5.80mm)	Series	SMM0207
Resistance	1 MOhms	Power (Watts)	1W
Packaging	Cut Tape (CT)	Package / Case	MELF, 0207
Other Names	749-1135-1	Operating Temperature	-55°C ~ 155°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	-	Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Failure Rate	-	Detailed Description	1 MOhms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Composition	Thin Film
