Home > Products > Resistors > Chip Resistor - Surface Mount > SMM02040E1000DB000

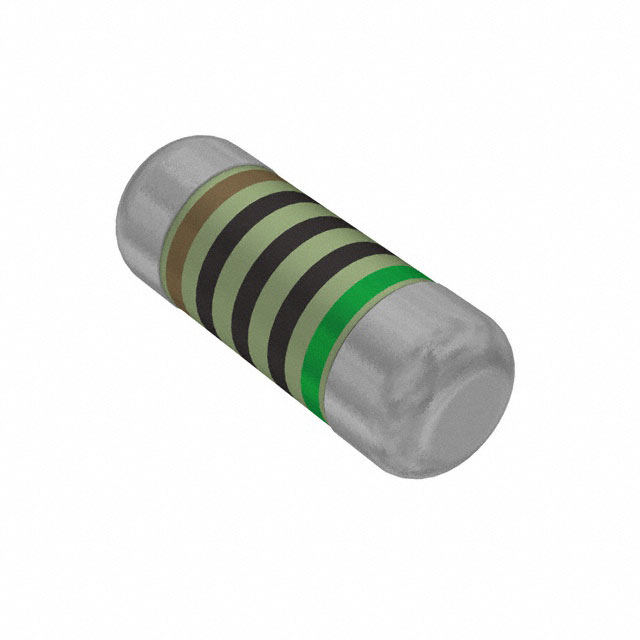

SMM02040E1000DB000

SMM02040E1000DB000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMM02040E1000DB000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMM02040E1000DB000
Manufacturer	Electro-Films (EFI) / Vishay
Description	RES 100 OHM 0.5% 1/4W MELF 0204
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 346052 pcs
Reference Price (In US Dollars)	10000 pcs
Reference Price (In US Dollars)	$0.056

Product parameter
Data sheet

Product parameter

Part Number	SMM02040E1000DB000	Manufacturer	Electro-Films (EFI) / Vishay
Description	RES 100 OHM 0.5% 1/4W MELF 0204	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	346052 pcs	Data sheet	SMM0204 Series Datasheet
Category	Resistors	Tolerance	±0.5%
Temperature Coefficient	±15ppm/°C	Supplier Device Package	Mini MELF
Size / Dimension	0.055" Dia x 0.142" L (1.40mm x 3.60mm)	Series	SMM0204
Resistance	100 Ohms	Power (Watts)	0.25W, 1/4W
Packaging	Tape & Reel (TR)	Package / Case	MELF, 0204
Operating Temperature	-55°C ~ 125°C	Number of Terminations	2
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	51 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding	Failure Rate	-
Detailed Description	100 Ohms ±0.5% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film	Composition	Thin Film
