SIR404DP-T1-GE3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIR404DP-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIR404DP-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIR404DP-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 20V 60A PPAK SO-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.371 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIR404DP-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 20V 60A PPAK SO-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90623 pcs | Data sheet | SIR404DP |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerPAK® SO-8 | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 20A, 10V | Power Dissipation (Max) | 6.25W (Ta), 104W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® SO-8 |
| Other Names | SIR404DP-T1-GE3TR SIR404DPT1GE3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 27 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 8130pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 97nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 60A (Tc) 6.25W (Ta), 104W (Tc) Surface Mount PowerPAK® SO-8 | Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
- Related products
- Related news
Related products
- Part#:
SIR414DP-T1-GE3 - Manufacturers:
Electro-Films (EFI) / Vishay - Description:
MOSFET N-CH 40V 50A PPAK SO-8 - In Stock:
75045
- Part#:
SIR412DP-T1-GE3 - Manufacturers:
Electro-Films (EFI) / Vishay - Description:
MOSFET N-CH 25V 20A PPAK SO-8 - In Stock:
149257
- Part#:
SIR408DP-T1-GE3 - Manufacturers:
Electro-Films (EFI) / Vishay - Description:
MOSFET N-CH 25V 50A PPAK SO-8 - In Stock:
4041
- Part#:
SIR401DP-T1-GE3 - Manufacturers:
Electro-Films (EFI) / Vishay - Description:

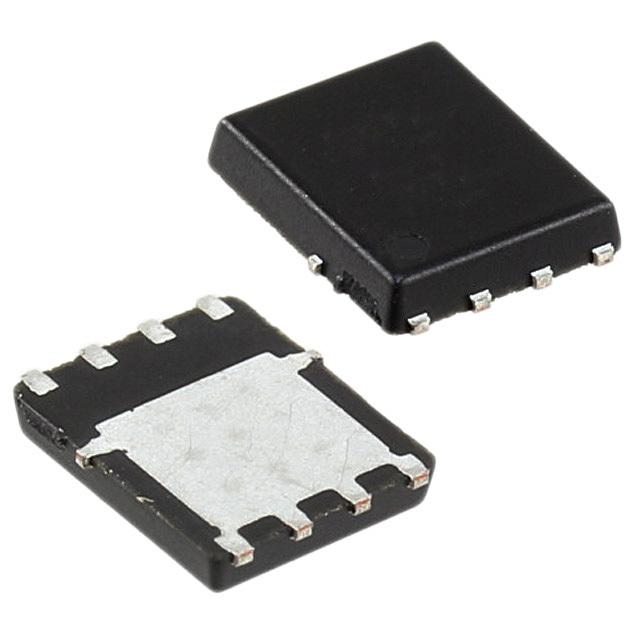

MOSFET P-CH 20V 50A PPAK SO-8 - In Stock:
