SIE804DF-T1-GE3

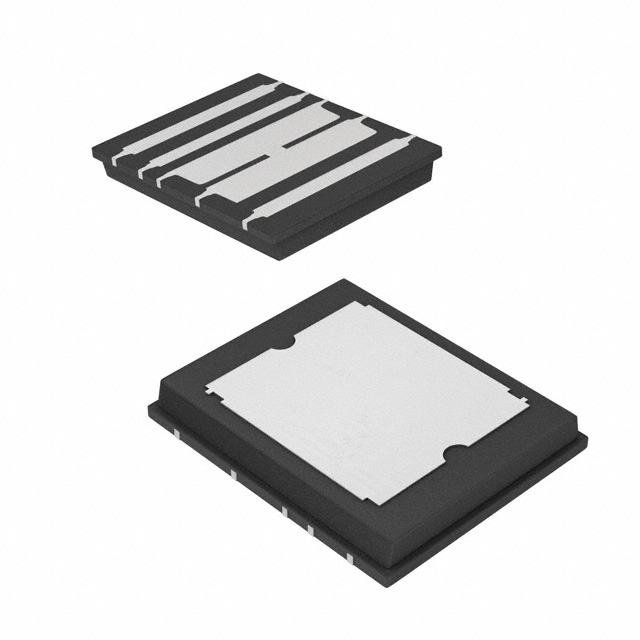

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIE804DF-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIE804DF-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIE804DF-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 150V 37A POLARPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIE804DF-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 150V 37A POLARPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4257 pcs | Data sheet | SIE804DF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 10-PolarPAK® (LH) | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 38 mOhm @ 7.6A, 10V | Power Dissipation (Max) | 5.2W (Ta), 125W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 10-PolarPAK® (LH) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3000pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 105nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | Drain to Source Voltage (Vdss) | 150V |
| Detailed Description | N-Channel 150V 37A (Tc) 5.2W (Ta), 125W (Tc) Surface Mount 10-PolarPAK® (LH) | Current - Continuous Drain (Id) @ 25°C | 37A (Tc) |
