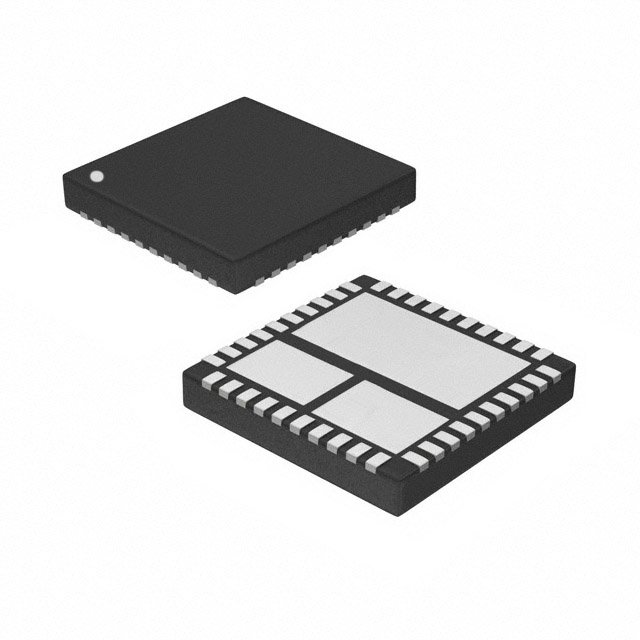

SIC769CD-T1-E3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIC769CD-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Dowload SIC769CD-T1-E3 Details in PDFSee Product Specifications for product details.
Buy SIC769CD-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIC769CD-T1-E3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IC CTLR PFC STAGE PPAK MLP66-40 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIC769CD-T1-E3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IC CTLR PFC STAGE PPAK MLP66-40 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4771 pcs | Data sheet | SIC769 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 3 V ~ 16 V | Technology | DrMOS |
| Supplier Device Package | PowerPAK® MLP66-40 | Series | - |
| Rds On (Typ) | 1.7 mOhm LS, 6 mOhm HS | Packaging | Tape & Reel (TR) |
| Package / Case | 40-PowerWFQFN Module | Output Configuration | Half Bridge |
| Other Names | SIC769CD-T1-E3-ND SIC769CD-T1-E3TR SIC769CDT1E3 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM | Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO | Detailed Description | Half Bridge Driver Synchronous Buck Converters DrMOS PowerPAK® MLP66-40 |
| Current - Peak Output | - | Current - Output / Channel | 35A |
| Base Part Number | SIC769 | Applications | Synchronous Buck Converters |
