SIB406EDK-T1-GE3

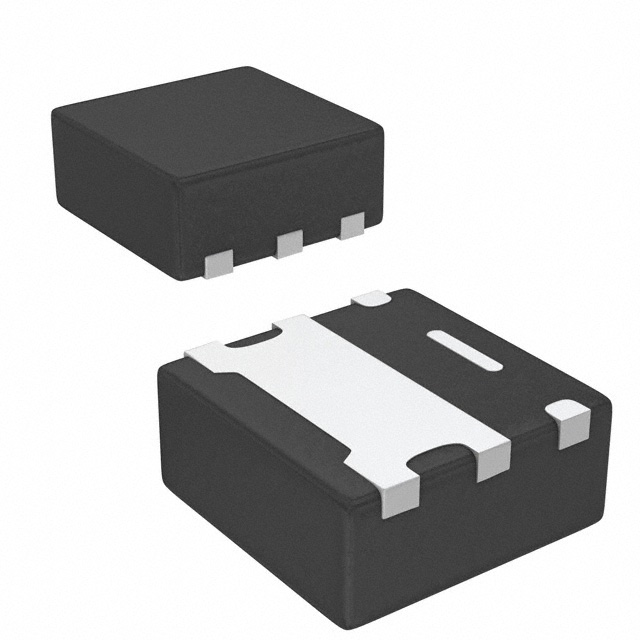

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIB406EDK-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIB406EDK-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIB406EDK-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 20V 6A SC-75-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.08 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIB406EDK-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 20V 6A SC-75-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 243459 pcs | Data sheet | SIB406EDK |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerPAK® SC-75-6L Single | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 46 mOhm @ 3.9A, 4.5V | Power Dissipation (Max) | 1.95W (Ta), 10W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® SC-75-6L |
| Other Names | SIB406EDK-T1-GE3TR SIB406EDKT1GE3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 350pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 6A (Tc) 1.95W (Ta), 10W (Tc) Surface Mount PowerPAK® SC-75-6L Single |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
