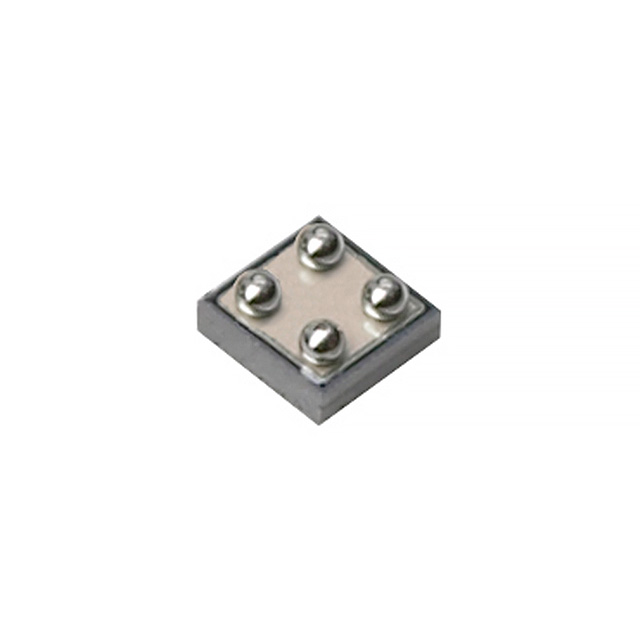

SI8824EDB-T2-E1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8824EDB-T2-E1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8824EDB-T2-E1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8824EDB-T2-E1 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 20V 2.1A MICROFOOT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.191 | $0.149 | $0.102 | $0.07 | $0.053 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8824EDB-T2-E1 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 20V 2.1A MICROFOOT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 452254 pcs | Data sheet | SI8824EDB |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Vgs (Max) | ±5V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 4-Microfoot | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 75 mOhm @ 1A, 4.5V | Power Dissipation (Max) | 500mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 4-XFBGA |
| Other Names | SI8824EDB-T2-E1CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 46 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 400pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 500mW (Ta) Surface Mount 4-Microfoot | Current - Continuous Drain (Id) @ 25°C | - |
