SI8424CDB-T1-E1

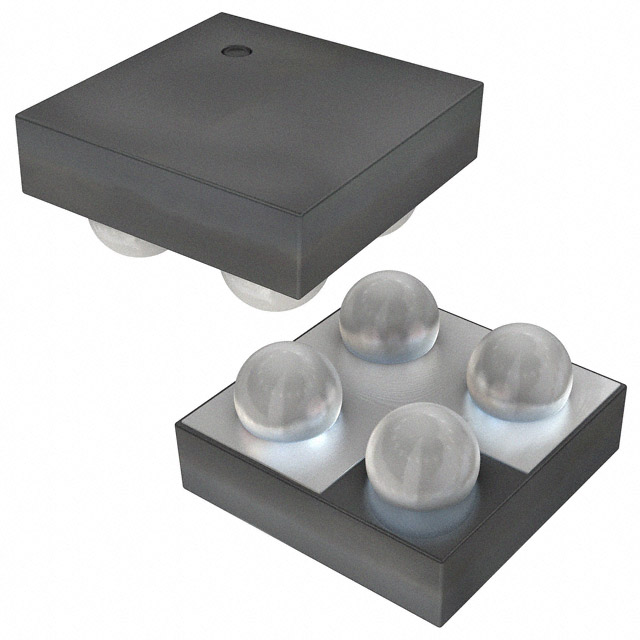

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8424CDB-T1-E1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8424CDB-T1-E1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8424CDB-T1-E1 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 8V MICROFOOT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.272 | $0.229 | $0.172 | $0.126 | $0.097 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8424CDB-T1-E1 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 8V MICROFOOT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196366 pcs | Data sheet | SI8424CDB |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Vgs (Max) | ±5V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 4-Microfoot | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 2A, 4.5V | Power Dissipation (Max) | 1.1W (Ta), 2.7W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 4-UFBGA, WLCSP |
| Other Names | SI8424CDB-T1-E1CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2340pF @ 4V |
| Gate Charge (Qg) (Max) @ Vgs | 40nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Drain to Source Voltage (Vdss) | 8V | Detailed Description | N-Channel 8V 1.1W (Ta), 2.7W (Tc) Surface Mount 4-Microfoot |
| Current - Continuous Drain (Id) @ 25°C | - |
