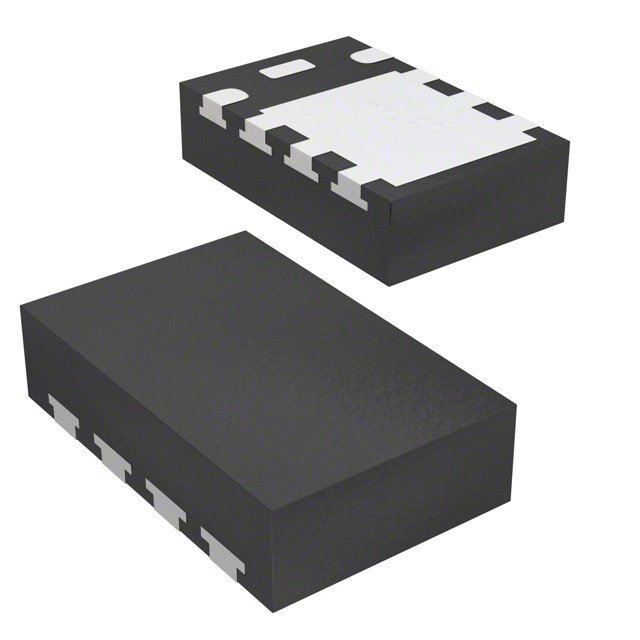

SI5419DU-T1-GE3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI5419DU-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI5419DU-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI5419DU-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET P-CH 30V 12A PPAK CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.086 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI5419DU-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET P-CH 30V 12A PPAK CHIPFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 225766 pcs | Data sheet | SI5419DU |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PowerPak® ChipFet (3x1.9) | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 6.6A, 10V | Power Dissipation (Max) | 3.1W (Ta), 31W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | SI5419DU-T1-GE3TR SI5419DUT1GE3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 45nC @ 10V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 12A (Tc) 3.1W (Ta), 31W (Tc) Surface Mount 8-PowerPak® ChipFet (3x1.9) | Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
