Home > Products > Discrete Semiconductor Products > Transistors - FETs, MOSFETs - Single > SI1305DL-T1-GE3

SI1305DL-T1-GE3

SI1305DL-T1-GE3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI1305DL-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SI1305DL-T1-GE3
Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET P-CH 8V 0.86A SC-70-3
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4686 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SI1305DL-T1-GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET P-CH 8V 0.86A SC-70-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4686 pcs	Data sheet	SI1305DL
Category	Discrete Semiconductor Products	Vgs(th) (Max) @ Id	450mV @ 250µA (Min)
Vgs (Max)	±8V	Technology	MOSFET (Metal Oxide)
Supplier Device Package	SC-70-3	Series	TrenchFET®
Rds On (Max) @ Id, Vgs	280 mOhm @ 1A, 4.5V	Power Dissipation (Max)	290mW (Ta)
Packaging	Cut Tape (CT)	Package / Case	SC-70, SOT-323
Other Names	SI1305DL-T1-GE3CT	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gate Charge (Qg) (Max) @ Vgs	4nC @ 4.5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V	Drain to Source Voltage (Vdss)	8V
Detailed Description	P-Channel 8V 860mA (Ta) 290mW (Ta) Surface Mount SC-70-3	Current - Continuous Drain (Id) @ 25°C	860mA (Ta)

Related products
Related news

Related products

SI1307DL-T1-E3 Image

Part#:~~SI1307DL-T1-E3~~
Manufacturers:~~Electro-Films (EFI) / Vishay~~
Description:~~MOSFET P-CH 12V 0.85A SOT323-3~~
In Stock:~~5241~~

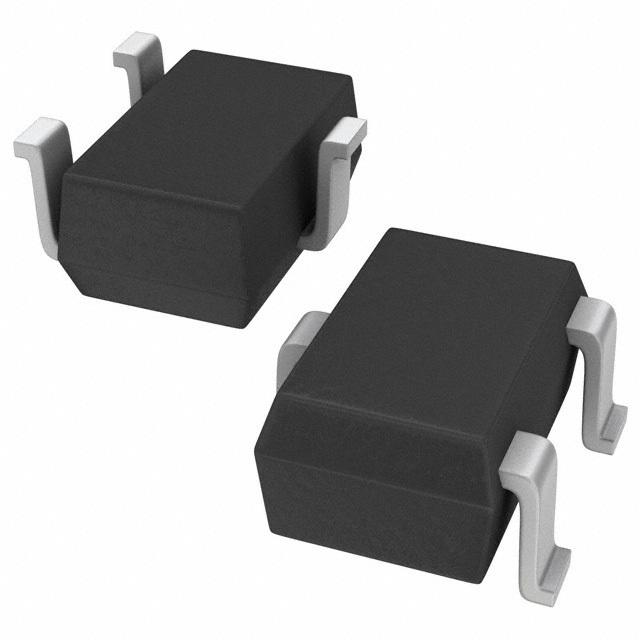

SI1308EDL-T1-GE3 Image
