Home > Products > Circuit Protection > PTC Resettable Fuses > PTCTZ3NR949ETE

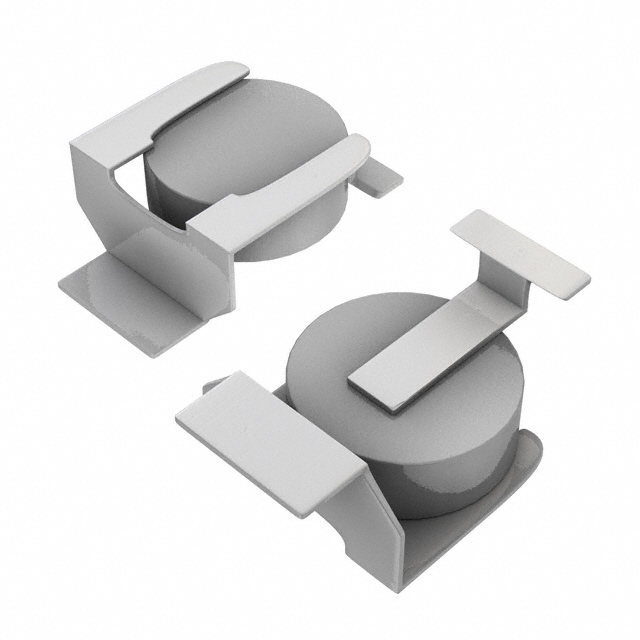

PTCTZ3NR949ETE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTCTZ3NR949ETE with confidence from Components-World.HK, 1 Year Warranty

Dowload PTCTZ3NR949ETE Details in PDF

Request a Quote

Part Number	PTCTZ3NR949ETE
Manufacturer	Electro-Films (EFI) / Vishay
Description	PTC RESET FUSE 60V 2SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 116512 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.20

Product parameter
Data sheet

Product parameter

Part Number	PTCTZ3NR949ETE	Manufacturer	Electro-Films (EFI) / Vishay
Description	PTC RESET FUSE 60V 2SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	116512 pcs	Data sheet	2381 661 97.../PTCTZ..R....TE
Category	Circuit Protection	Voltage - Max	60V
Type	Ceramic	Time to Trip	1.8s
Thickness (Max)	0.142" (3.60mm)	Size / Dimension	0.394" L x 0.283" W (10.00mm x 7.20mm)
Series	PTCTZ	Resistance - 25°C (Typ)	9.4 Ohms
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	2-SMD	Other Names	2381 661 97011 2381 661 97011-ND 238166197011
Operating Temperature	-	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	21 Weeks
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	-	Detailed Description	Ceramic PTC Resettable Fuse 60V Ih Surface Mount 2-SMD
Current - Trip (It)	300mA	Current - Max	150mA
Approvals	-
