PTCCL05H940EBE

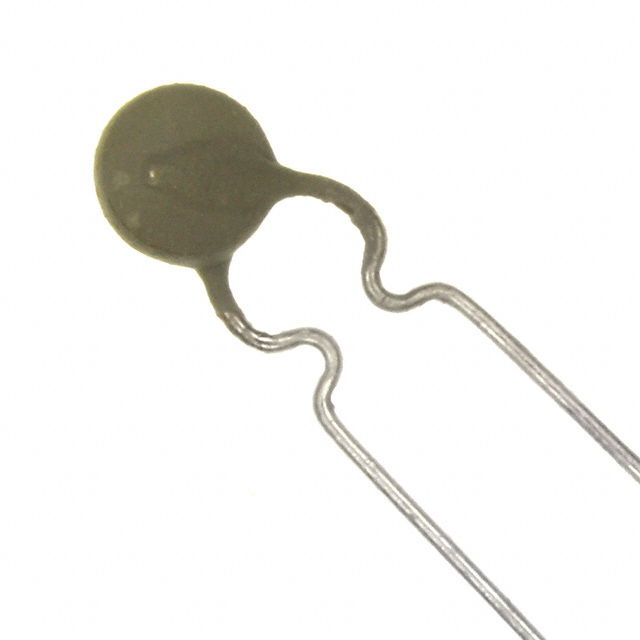

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTCCL05H940EBE with confidence from Components-World.HK, 1 Year Warranty
Dowload PTCCL05H940EBE Details in PDFSee Product Specifications for product details.
Buy PTCCL05H940EBE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTCCL05H940EBE |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | PTC RESET FUSE 60V 94MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $0.40 | $0.384 | $0.312 | $0.269 | $0.233 | |
| 100 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.211 | $0.178 | $0.158 | $0.144 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTCCL05H940EBE | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | PTC RESET FUSE 60V 94MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 146591 pcs | Data sheet | PTCCL Series, 30V, 60V |
| Category | Circuit Protection | Voltage - Max | 60V |
| Type | Ceramic | Thickness (Max) | - |
| Size / Dimension | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | Series | PTCCL |
| Resistance - 25°C (Typ) | 50 Ohms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | 2381 660 59491 238166059491 BC2319 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Spacing | 0.197" (5.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.394" (10.00mm) |
| Detailed Description | Ceramic PTC Resettable Fuse 60V 94mA Ih Through Hole Radial, Disc | Current - Trip (It) | 145mA |
| Current - Max | 800mA | Current - Hold (Ih) (Max) | 94mA |
| Approvals | UR |
