PATT0402E2002BGT1

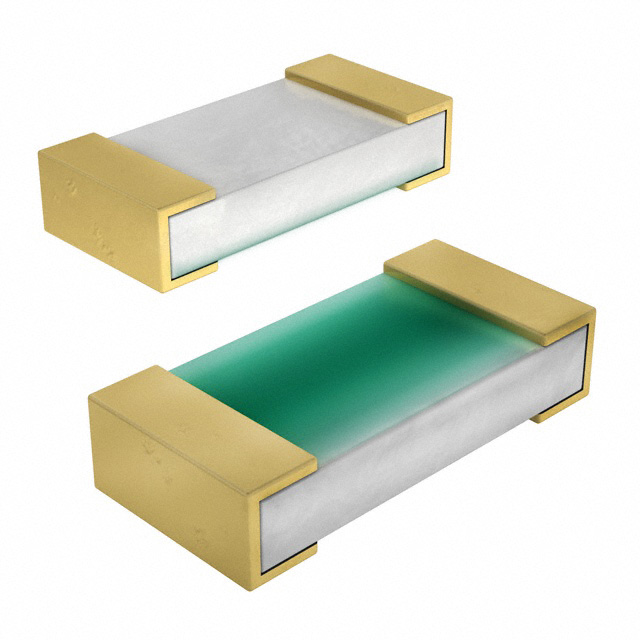

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PATT0402E2002BGT1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PATT0402E2002BGT1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PATT0402E2002BGT1 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | RES SMD 20K OHM 0.1% 1/20W 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.445 | $0.395 | $0.287 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PATT0402E2002BGT1 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | RES SMD 20K OHM 0.1% 1/20W 0402 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69168 pcs | Data sheet | PATT Series DatasheetThin Film Land Patterns |
| Category | Resistors | Tolerance | ±0.1% |
| Temperature Coefficient | ±25ppm/°C | Supplier Device Package | 0402 |
| Size / Dimension | 0.042" L x 0.022" W (1.07mm x 0.56mm) | Series | PATT |
| Resistance | 20 kOhms | Power (Watts) | 0.05W, 1/20W |
| Packaging | Original-Reel® | Package / Case | 0402 (1005 Metric) |
| Other Names | 764-1165-6 | Operating Temperature | -55°C ~ 250°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.018" (0.46mm) | Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Failure Rate | - | Detailed Description | 20 kOhms ±0.1% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film |
| Composition | Thin Film |
