MAL213814103E3

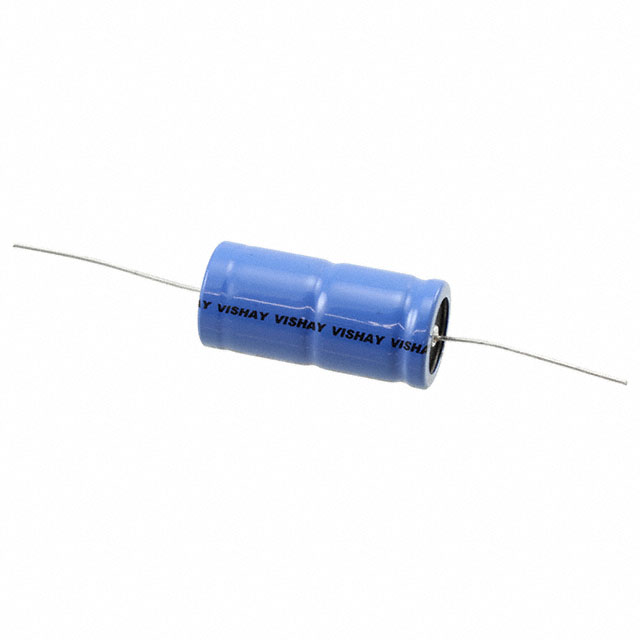

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAL213814103E3 with confidence from Components-World.HK, 1 Year Warranty
Dowload MAL213814103E3 Details in PDFSee Product Specifications for product details.
Buy MAL213814103E3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAL213814103E3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | CAP ALUM 10000UF 20% 10V AXIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.249 | $2.022 | $1.528 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.258 | $1.169 | $1.164 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAL213814103E3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | CAP ALUM 10000UF 20% 10V AXIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30461 pcs | Data sheet | 138 AML (MAL2138) Series |
| Category | Capacitors | Voltage - Rated | 10V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | Series | 138 AML |
| Ripple Current @ Low Frequency | 1.98A @ 100Hz | Ripple Current @ High Frequency | 2.376A @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Axial, Can |
| Other Names | 2222 138 14103 222213814103 4197PHBK 4197PHBK-ND BC5024 MAL213814103 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance | 62 mOhms | Height - Seated (Max) | - |
| ESR (Equivalent Series Resistance) | 70 mOhm @ 100Hz | Detailed Description | 10000µF 10V Aluminum Electrolytic Capacitors Axial, Can 70 mOhm @ 100Hz 10000 Hrs @ 105°C |
| Capacitance | 10000µF | Applications | Automotive |
