IRKL56/04A

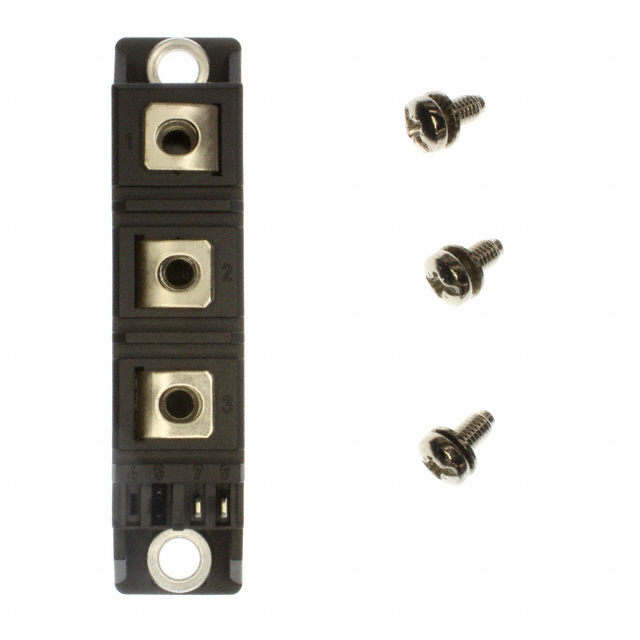

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRKL56/04A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRKL56/04A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRKL56/04A |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | SCR DBL HISCR 400V 60A ADDAPAK |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRKL56/04A | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | SCR DBL HISCR 400V 60A ADDAPAK | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5559 pcs | Data sheet | IRK.41, .56 Series |
| Category | Discrete Semiconductor Products | Voltage - Off State | 400V |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5V | Structure | Series Connection - SCR/Diode |
| Series | - | Packaging | Bulk |
| Package / Case | ADD-A-PAK (3 + 2) | Other Names | *IRKL56/04A IRKL56/04 IRKL56/04-ND IRKL5604A |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | SCR Module 400V 135A Series Connection - SCR/Diode Chassis Mount ADD-A-PAK (3 + 2) |
| Current - On State (It (RMS)) (Max) | 135A | Current - On State (It (AV)) (Max) | 60A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1310A, 1370A | Current - Hold (Ih) (Max) | 200mA |
| Current - Gate Trigger (Igt) (Max) | 150mA | Base Part Number | KL56 |
