IRC830PBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRC830PBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRC830PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRC830PBF |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 500V 4.5A TO-220-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRC830PBF | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 500V 4.5A TO-220-5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4171 pcs | Data sheet | IRC830 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |

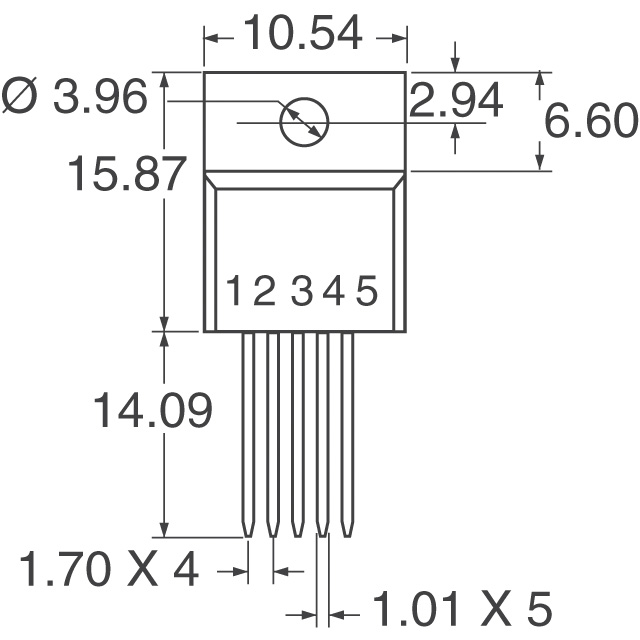

| Supplier Device Package | TO-220-5 | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 2.7A, 10V | Power Dissipation (Max) | 74W (Tc) |
| Packaging | Tube | Package / Case | TO-220-5 |
| Other Names | *IRC830PBF | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 610pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V | FET Type | N-Channel |
| FET Feature | Current Sensing | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 500V | Detailed Description | N-Channel 500V 4.5A (Tc) 74W (Tc) Through Hole TO-220-5 |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) |
