Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > HFA160NJ40C

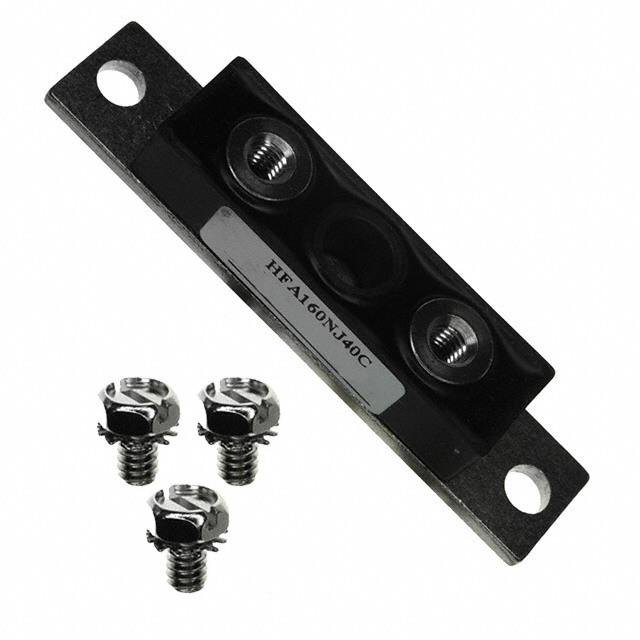

HFA160NJ40C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFA160NJ40C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HFA160NJ40C
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE MODULE 400V 170A TO244AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5056 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HFA160NJ40C	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE MODULE 400V 170A TO244AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5056 pcs	Data sheet	HFA160NJ40C Datasheet
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.3V @ 80A
Voltage - DC Reverse (Vr) (Max)	400V	Supplier Device Package	TO-244AB (Isolated)
Speed	Fast Recovery = 200mA (Io)	Series	HEXFRED®
Reverse Recovery Time (trr)	140ns	Packaging	Bulk
Package / Case	TO-244AB Isolated Tab	Other Names	*HFA160NJ40C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Standard 400V 170A (DC) Chassis Mount TO-244AB Isolated Tab
Current - Reverse Leakage @ Vr	6µA @ 400V	Current - Average Rectified (Io) (per Diode)	170A (DC)
Base Part Number	HFA160
