Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > HFA135NH40R

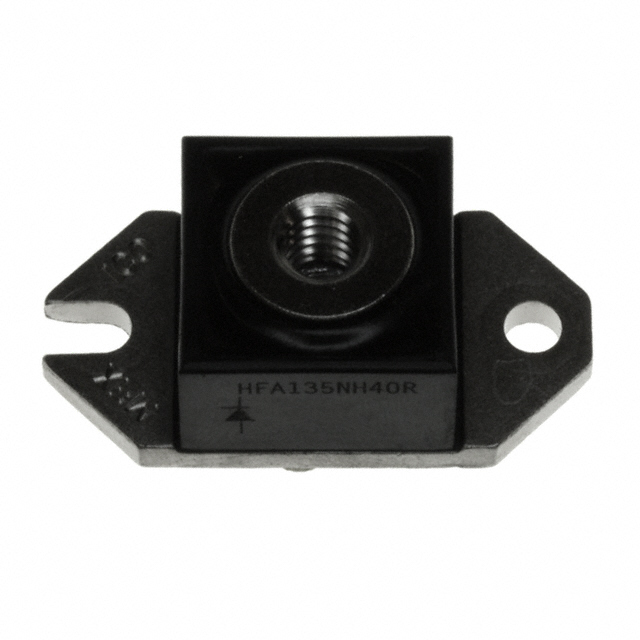

HFA135NH40R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFA135NH40R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HFA135NH40R
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 400V 135A HALFPAK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5794 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HFA135NH40R	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 400V 135A HALFPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5794 pcs	Data sheet	HFA135NH40R Datasheet
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.3V @ 135A
Voltage - DC Reverse (Vr) (Max)	400V	Supplier Device Package	HALF-PAK
Speed	Fast Recovery = 200mA (Io)	Series	HEXFRED®
Reverse Recovery Time (trr)	120ns	Packaging	Bulk
Package / Case	D-67 HALF-PAK	Other Names	*HFA135NH40R VS-HFA135NH40R VS-HFA135NH40R-ND VSHFA135NH40R VSHFA135NH40R-ND
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Detailed Description	Diode Standard 400V 135A Chassis Mount HALF-PAK	Current - Reverse Leakage @ Vr	9µA @ 400V
Current - Average Rectified (Io)	135A	Capacitance @ Vr, F	-
