Home > Products > Circuit Protection > Thermal Cutoffs (Thermal Fuses) > HCTF235L055000BR00

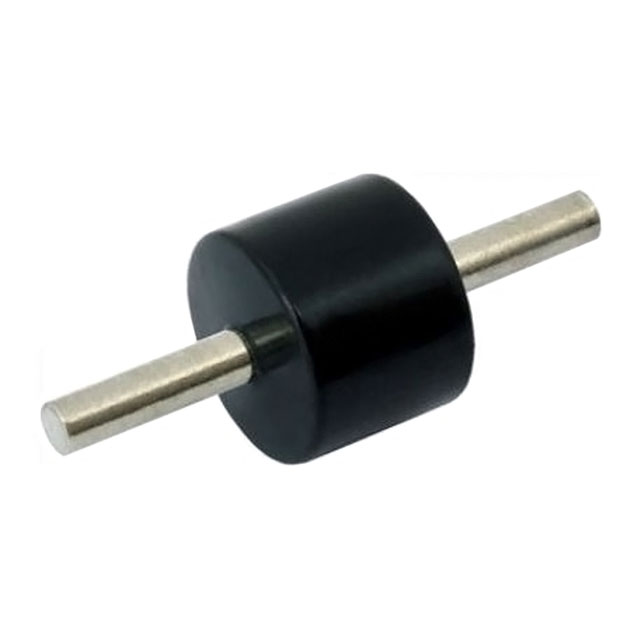

HCTF235L055000BR00

HCTF235L055000BR00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCTF235L055000BR00 with confidence from Components-World.HK, 1 Year Warranty

Dowload HCTF235L055000BR00 Details in PDF

Request a Quote

Part Number	HCTF235L055000BR00
Manufacturer	Electro-Films (EFI) / Vishay
Description	TCO 24V 55A 235C (455F) AXIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 35077 pcs
Reference Price (In US Dollars)	750 pcs	1500 pcs	2250 pcs
Reference Price (In US Dollars)	$1.115	$1.00	$0.962

Product parameter
Data sheet

Product parameter

Part Number	HCTF235L055000BR00	Manufacturer	Electro-Films (EFI) / Vishay
Description	TCO 24V 55A 235C (455F) AXIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35077 pcs	Data sheet	HCTF Series Product Sheet HCTF Series Datasheet
Category	Circuit Protection	Voltage - Rated DC	24V
Series	HCTF	Rated Functioning Temperature	235°C (455°F)
Package / Case	Axial	Other Names	749-1129-2
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Maximum Temperature Limit	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Holding Temperature	160°C (320°F)	Detailed Description	Thermal Cutoff (TCO) 24V DC 55A 235°C (455°F) Axial
Current Rating	55A	Approvals	-
