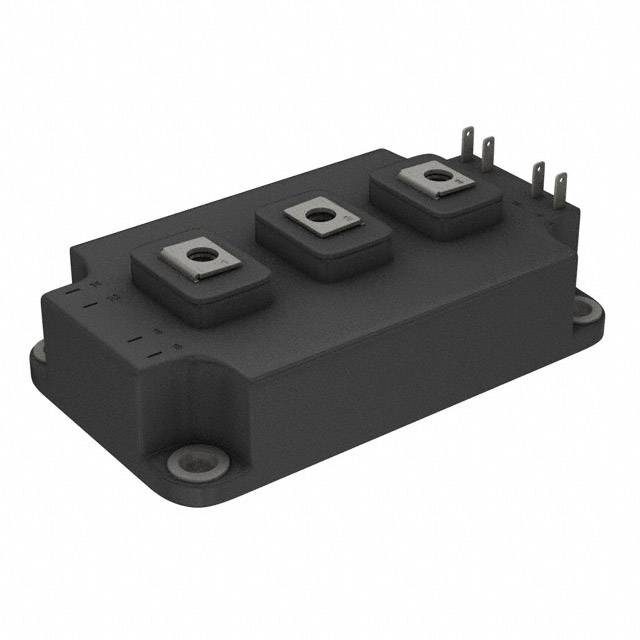

GA400TD25S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GA400TD25S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GA400TD25S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GA400TD25S |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IGBT FAST 250V 400A INT-A-PAK |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | GA400TD25S | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IGBT FAST 250V 400A INT-A-PAK | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5109 pcs | Data sheet | GA400TD25S |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 250V |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 400A | Supplier Device Package | Dual INT-A-PAK |
| Series | - | Power - Max | 1350W |
| Package / Case | Dual INT-A-PAK (3 + 8) | Other Names | *GA400TD25S VS-GA400TD25S VS-GA400TD25S-ND VSGA400TD25S VSGA400TD25S-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Input Capacitance (Cies) @ Vce | 36nF @ 30V |
| Input | Standard | IGBT Type | - |
| Detailed Description | IGBT Module Half Bridge 250V 400A 1350W Chassis Mount Dual INT-A-PAK | Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 400A | Configuration | Half Bridge |
| Base Part Number | GA*TD |
