DG449DS-T1-E3

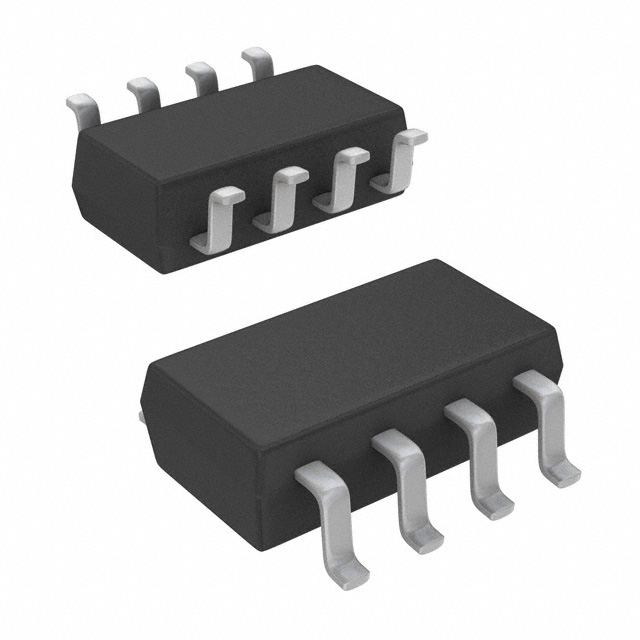

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG449DS-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Dowload DG449DS-T1-E3 Details in PDFSee Product Specifications for product details.
Buy DG449DS-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DG449DS-T1-E3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IC SWITCH SINGLE SPDT SOT23-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.528 | $0.473 | $0.449 | $0.369 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.345 | $0.305 | $0.241 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DG449DS-T1-E3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IC SWITCH SINGLE SPDT SOT23-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92905 pcs | Data sheet | DG449 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 7 V ~ 36 V |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 20 V | Switch Time (Ton, Toff) (Max) | 146ns, 104ns |
| Switch Circuit | SPDT | Supplier Device Package | SOT-23-8 |
| Series | - | Packaging | Original-Reel® |
| Package / Case | SOT-23-8 | Other Names | DG449DS-T1-E3DKR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 45 Ohm |
| Number of Circuits | 1 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 1 Circuit IC Switch 2:1 45 Ohm SOT-23-8 |
| Current - Leakage (IS(off)) (Max) | 1nA | Crosstalk | -80dB @ 1MHz |
| Charge Injection | 5pC | Channel-to-Channel Matching (ΔRon) | 5 Ohm (Max) |
| Channel Capacitance (CS(off), CD(off)) | 8pF | Base Part Number | DG449 |
| -3db Bandwidth | - |
