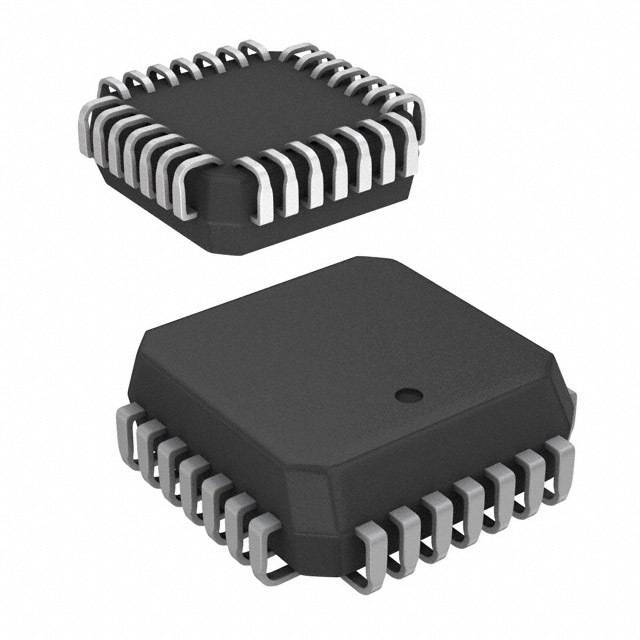

DG407DN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG407DN with confidence from Components-World.HK, 1 Year Warranty
Dowload DG407DN Details in PDFSee Product Specifications for product details.
Buy DG407DN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DG407DN |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IC MULTIPLEXER 16X1 28PLCC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DG407DN | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IC MULTIPLEXER 16X1 28PLCC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5889 pcs | Data sheet | DG406, DG407 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±5 V ~ 20 V | Switch Time (Ton, Toff) (Max) | 200ns, 150ns |
| Switch Circuit | - | Supplier Device Package | 28-PLCC (11.51x11.51) |
| Series | - | Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) | Other Names | DG407DNVSI |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 100 Ohm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 8:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | 2 Circuit IC Switch 8:1 100 Ohm 28-PLCC (11.51x11.51) | Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - | Charge Injection | 15pC |
| Channel-to-Channel Matching (ΔRon) | 5 Ohm | Channel Capacitance (CS(off), CD(off)) | 8pF, 65pF |
| -3db Bandwidth | - |
