DG2730DN-T1-GE4

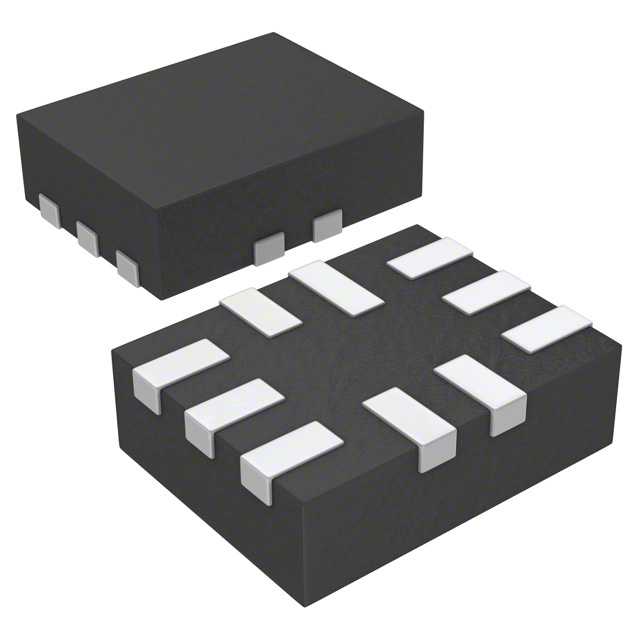

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG2730DN-T1-GE4 with confidence from Components-World.HK, 1 Year Warranty
Dowload DG2730DN-T1-GE4 Details in PDFSee Product Specifications for product details.
Buy DG2730DN-T1-GE4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DG2730DN-T1-GE4 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IC SWITCH DPDT 8 OHM 10MINIQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6000 pcs | ||||
|---|---|---|---|---|---|
| $0.214 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DG2730DN-T1-GE4 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IC SWITCH DPDT 8 OHM 10MINIQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 108330 pcs | Data sheet | DG2730 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 2.6 V ~ 4.3 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| Switch Circuit | DPDT | Supplier Device Package | 10-miniQFN (1.4x1.8) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN | Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 8 Ohm | Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 2:2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 Circuit IC Switch 2:2 8 Ohm 10-miniQFN (1.4x1.8) | Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -45dB @ 240MHz | Charge Injection | 0.5pC |
| Channel-to-Channel Matching (ΔRon) | 800 mOhm | Channel Capacitance (CS(off), CD(off)) | 2.2pF |
| Base Part Number | DG2730 | -3db Bandwidth | 900MHz |
