CHPHT0805K1003FGTA

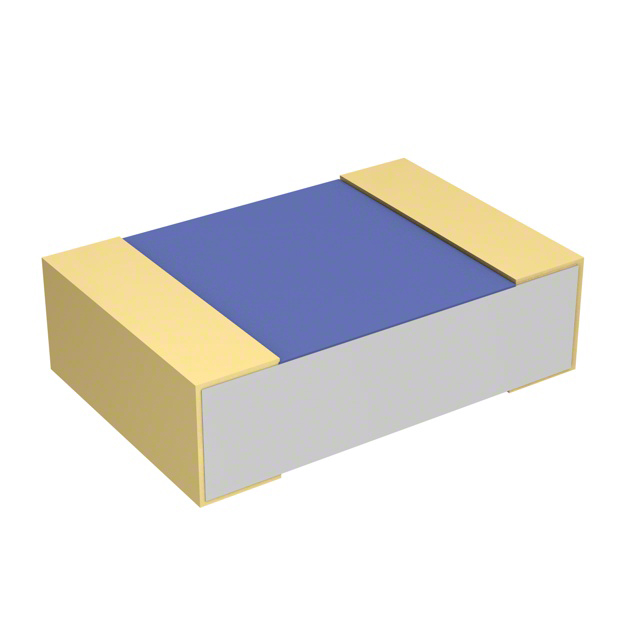

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHPHT0805K1003FGTA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHPHT0805K1003FGTA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHPHT0805K1003FGTA |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | RES SMD 100K OHM 1% 0.02W 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $2.813 | $2.639 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CHPHT0805K1003FGTA | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | RES SMD 100K OHM 1% 0.02W 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13286 pcs | Data sheet | CHPHT Series DatasheetResistors Down Hole Appl BrochureCHPHT Series Prod Sheet |
| Category | Resistors | Tolerance | ±1% |
| Temperature Coefficient | ±100ppm/°C | Supplier Device Package | 0805 |
| Size / Dimension | 0.073" L x 0.049" W (1.85mm x 1.25mm) | Series | CHPHT |
| Resistance | 100 kOhms | Power (Watts) | 0.02W |
| Packaging | Cut Tape (CT) | Package / Case | 0805 (2012 Metric) |
| Other Names | 716-1141-1 CHPHT0805K-100KCCT CHPHT0805K-100KCCT-ND |
Operating Temperature | -55°C ~ 230°C |
| Number of Terminations | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.020" (0.51mm) |
| Features | Moisture Resistant | Failure Rate | - |
| Detailed Description | 100 kOhms ±1% 0.02W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film | Composition | Thick Film |
