Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > 80CNQ035A

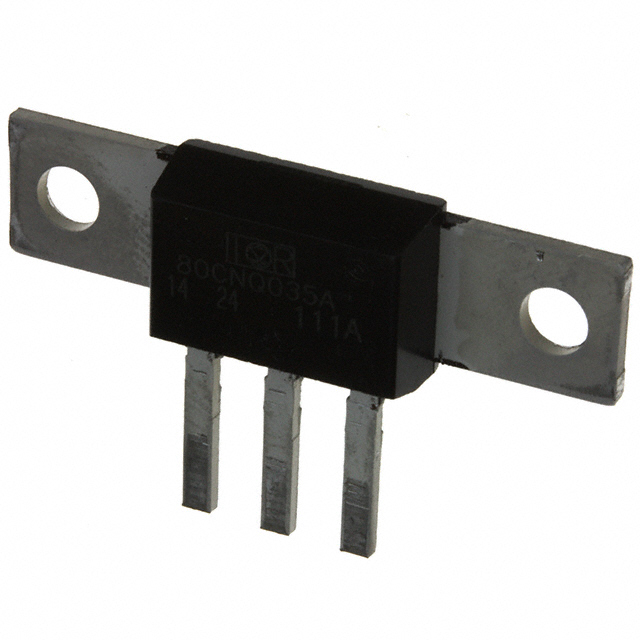

80CNQ035A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 80CNQ035A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	80CNQ035A
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE ARRAY SCHOTTKY 35V D618
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5863 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	80CNQ035A	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE ARRAY SCHOTTKY 35V D618	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5863 pcs	Data sheet	80CNQyyyA
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	520mV @ 40A
Voltage - DC Reverse (Vr) (Max)	35V	Supplier Device Package	D-61-8
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	D-61-8
Other Names	*80CNQ035A VS-80CNQ035A VS-80CNQ035A-ND VS80CNQ035A VS80CNQ035A-ND	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 35V 40A Chassis Mount D-61-8
Current - Reverse Leakage @ Vr	5mA @ 35V	Current - Average Rectified (Io) (per Diode)	40A
Base Part Number	80CNQ035
