Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > 201CNQ045

201CNQ045

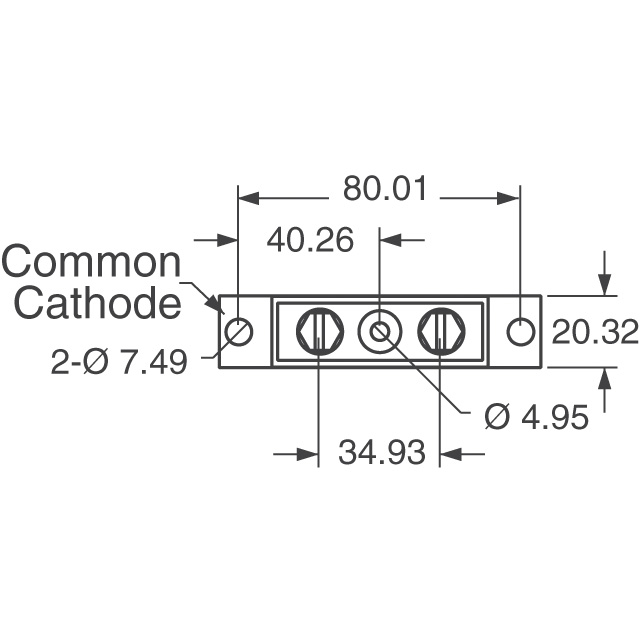

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 201CNQ045 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	201CNQ045
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE MODULE 45V 200A TO244AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4225 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	201CNQ045	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE MODULE 45V 200A TO244AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4225 pcs	Data sheet	201CNQ Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	670mV @ 100A
Voltage - DC Reverse (Vr) (Max)	45V	Supplier Device Package	TO-244AB
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	TO-244AB
Other Names	*201CNQ045 VS-201CNQ045 VS-201CNQ045-ND VS201CNQ045 VS201CNQ045-ND	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 45V 200A Chassis Mount TO-244AB
Current - Reverse Leakage @ Vr	10mA @ 45V	Current - Average Rectified (Io) (per Diode)	200A
Base Part Number	201CNQ*
